Modeling tephra dispersal

Until now, we have used a probabilistic model to simulate lava flow inundation, using models that consider limited to no physics. In contrast, most models for tephra dispersal and deposition require a physics-based approach to assess associated hazards.

This module introduces the modelling strategy that will be adopted throughout the following exercises, which relies on Tephra2 and TephraProb.

Objectives

Understand the large-scale physical processes controlling tephra dispersal modeling.
Review various modeling strategies, their purposes, benefits and limitations.
Introduce the concept of eruption source parameters.

Modeling tephra dispersal

Models are approximation of reality. In the case of natural hazards, a useful model must be able to estimate the spatial and temporal distribution of hazard intensity metrics as a function of initial contitions:

flowchart LR
A[Initial conditions] --> B[[MODEL]] --> C[Hazard intensity metrics]

For instance, a simple flood model might attempt to estimate the inundated area (→HIM) as a function of rainfall and the watershed properties (→initial conditions).

Models can be classified in two main categories:

Physical models rely on a simplified formulation of physical laws.
Mathematical models are data-driven and namely include statistical or machine learning-powered models. Q-LavHA falls in this category.

This part of the module focuses on the use of a physical model.

Model parametrisation

A physical model is a parametrisation of natural processes, which means that the physics behind a phenomenon is described by a set of equations that we could theoretically solve with the right input parameters. For instance, accurately describing tephra transport and deposition requires to account for the following aspects:

The generation of volcanic particles.
The ejection of volcanic pyroclasts in the atmosphere (→ the vertical column).
The dispersal of this material by the wind in the atmosphere (→ the "mushroom" horizontal plume).
The sedimentation of particles onto the ground (→ the tephra deposit).

There is no unique way of solving this problem. Depending on the assumptions behind the physical processes and the purpose of the model, the governing equations can be posed in a more or less complex way.

This slideshow summarises the various steps that tephra transport and deposition models have to solve:

ExsolutionFragmentationConvectionWind advectionTephra sedimentation

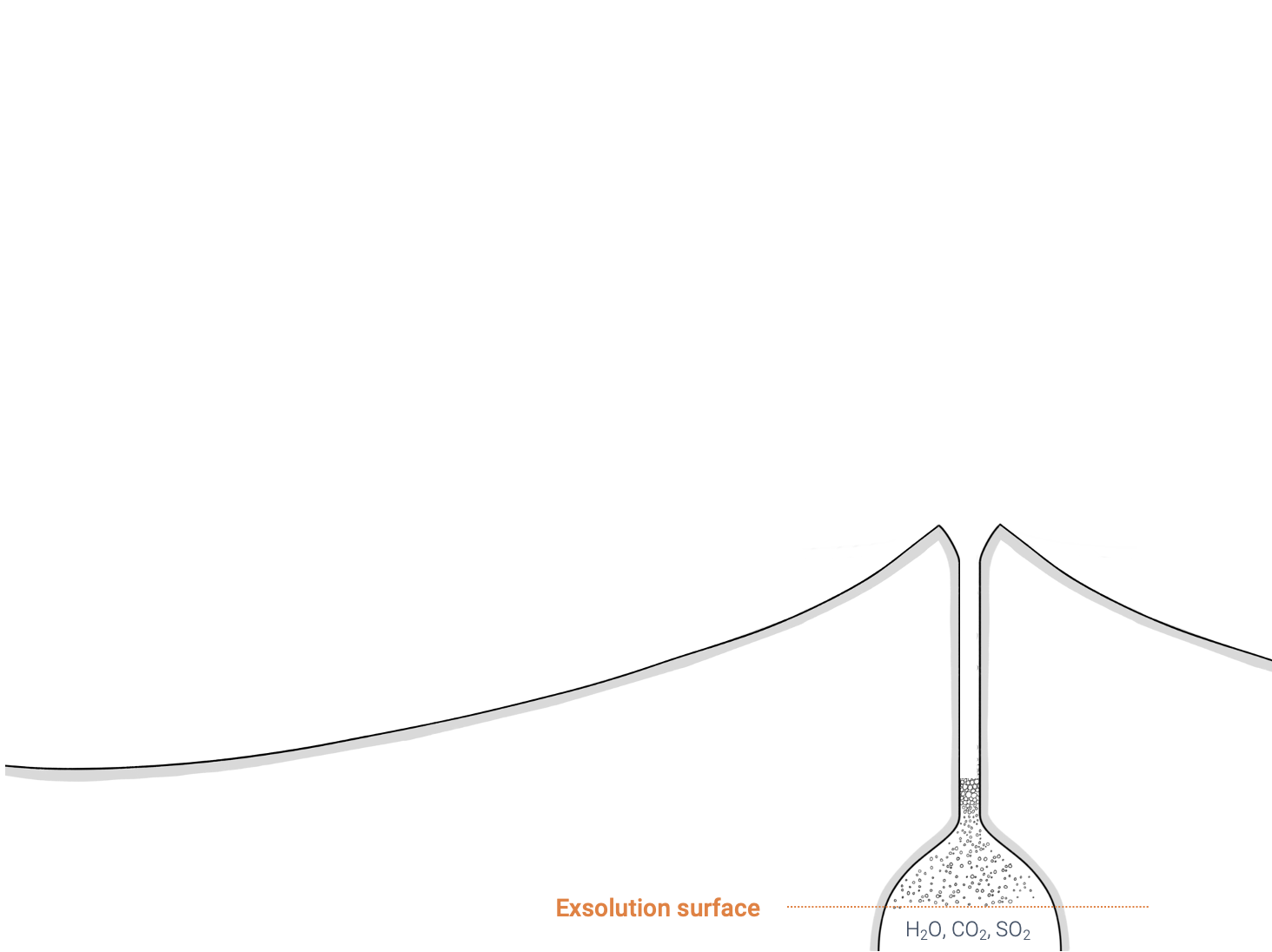

exsolution

Volatiles (→ gases) dissolved in the magma starts to escape.
As a result, the liquid magma starts rising in the conduit.

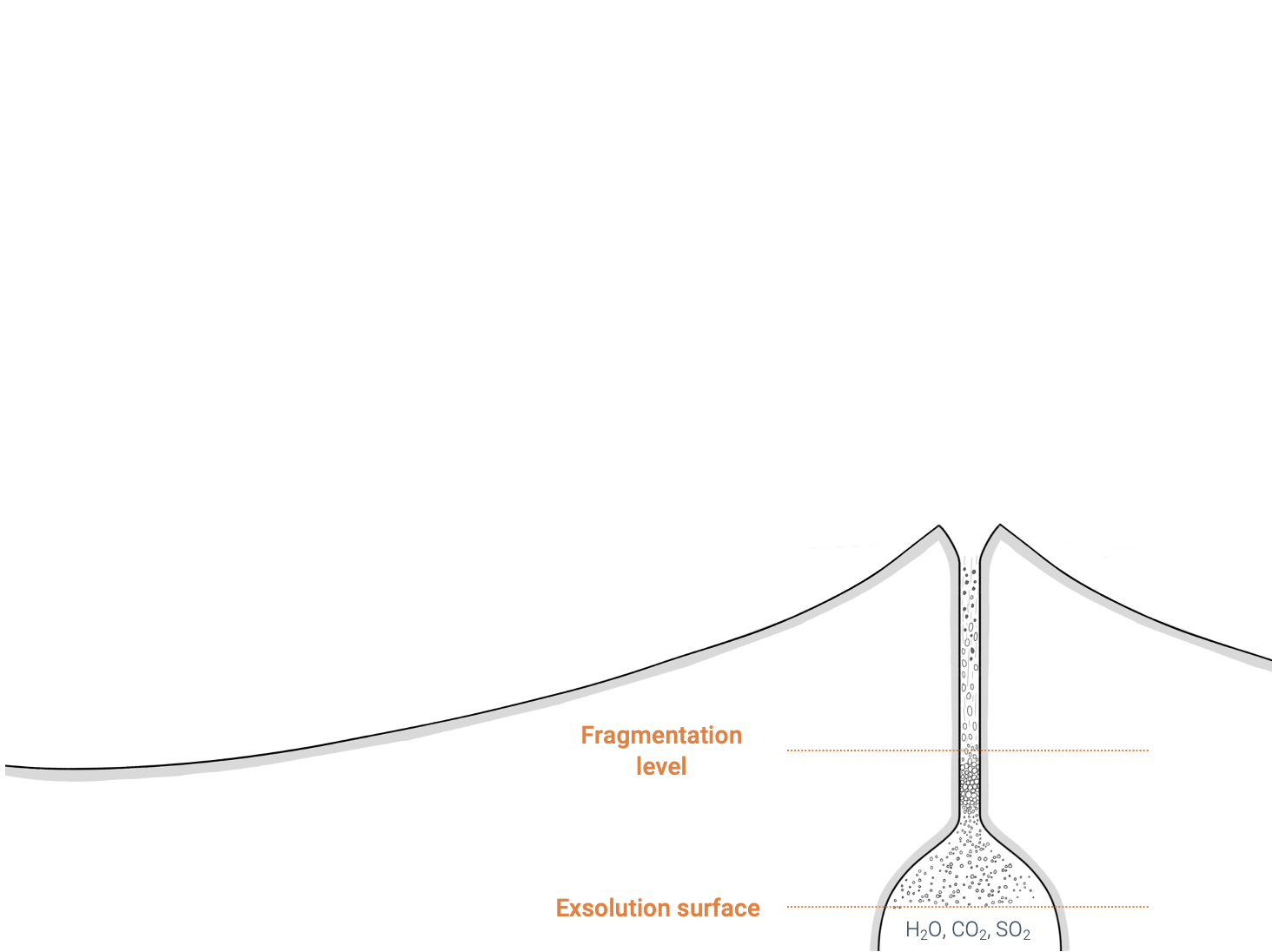

fragmentation

The liquid accelerates upwards, the rate of deformation becomes critical and the liquid starts behaving like a solid.
The magma becomes brittle and fragments: it is now a cloud of solid (→ pyroclasts) particles surrounded by gas.

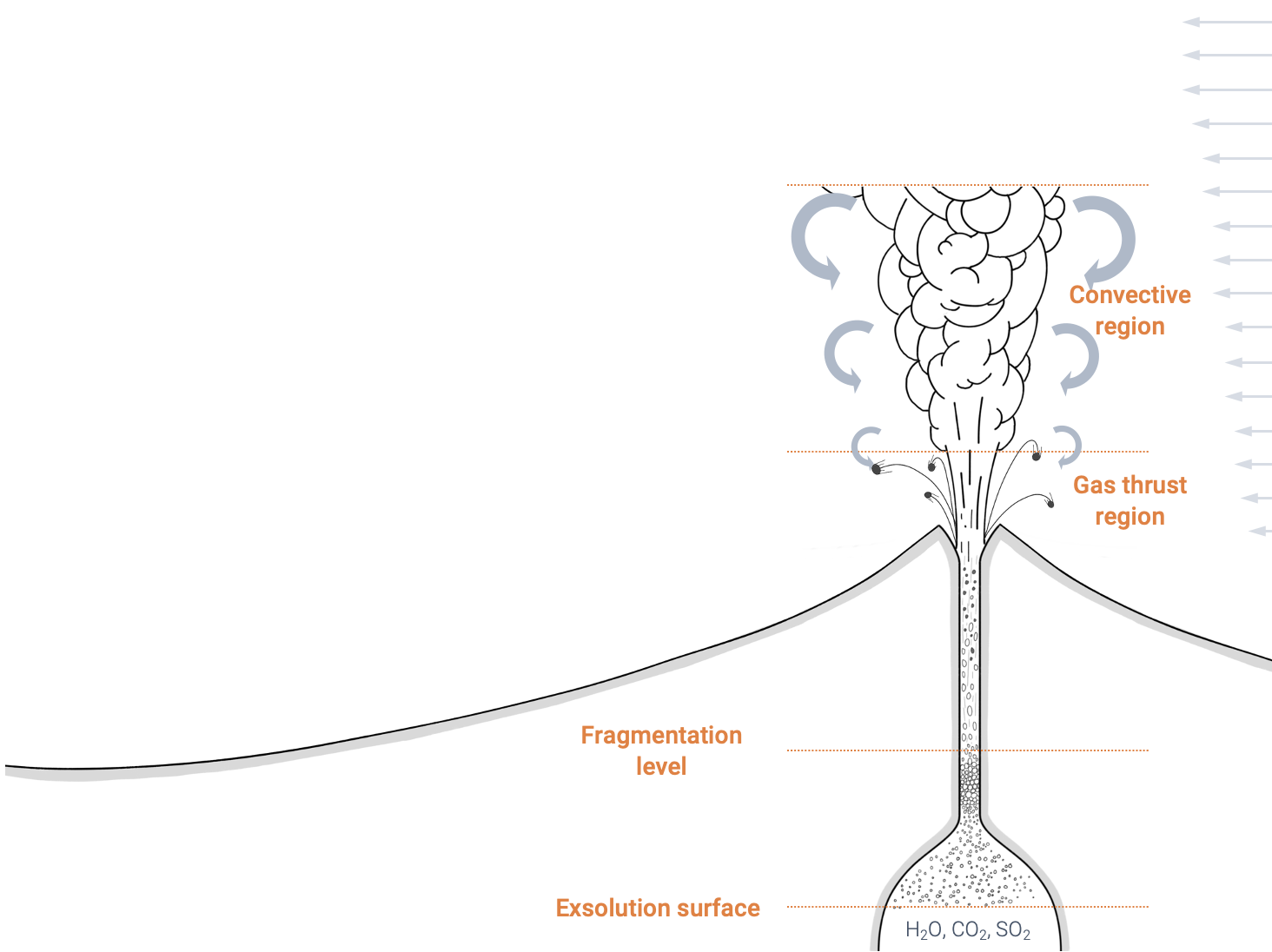

convection

The material reaches the atmosphere with sufficient momentum to entrain surrounding air.
The plume becomes lighter than the atmosphere and rises from buoyancy forces.

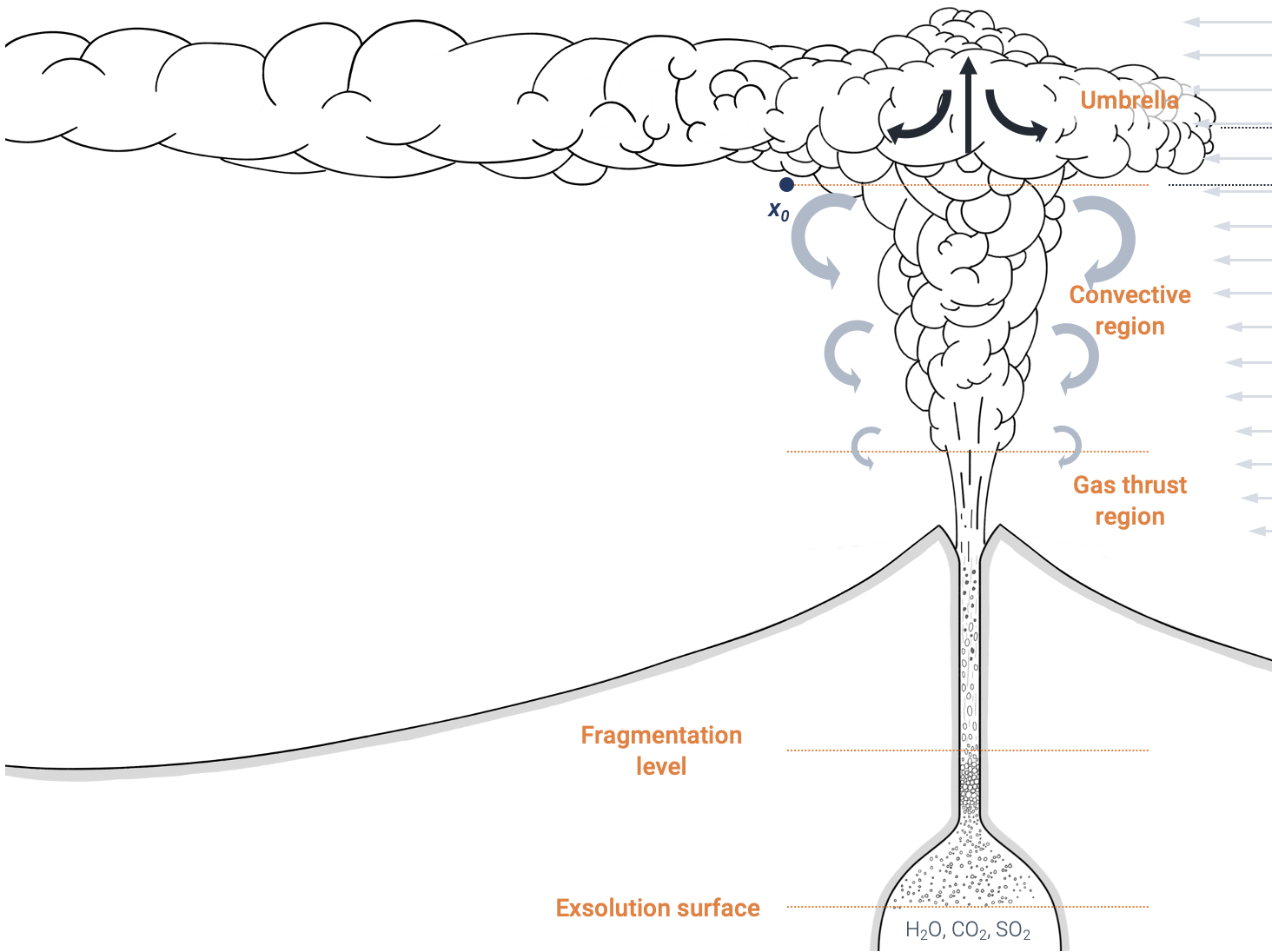

advection

After entraining sufficient air, the plume reaches the same density as the atmosphere (→ level of neutral buoyancy).
The umbrella cloud develops and elongates in the direction of the wind.

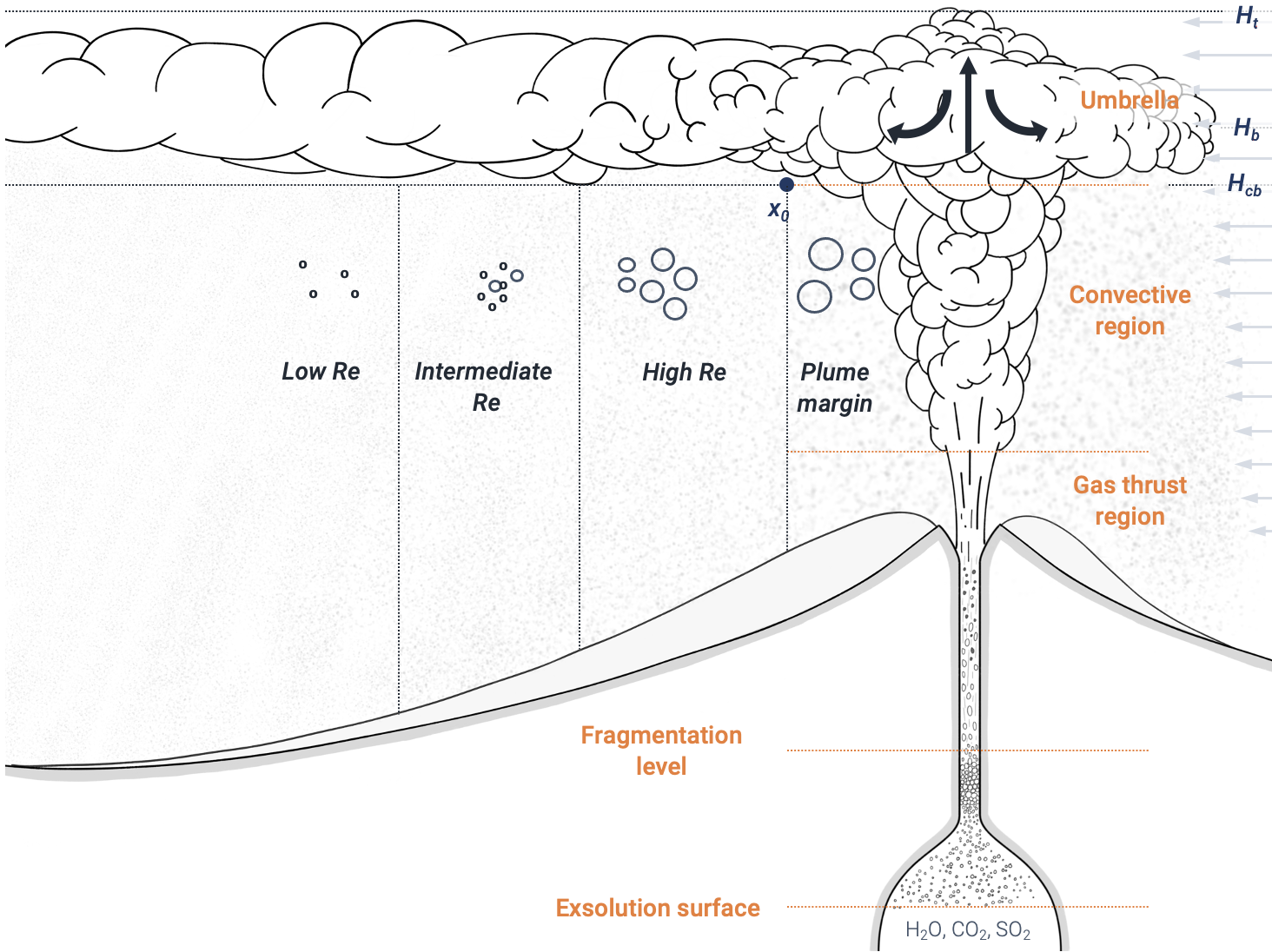

sedimentation

Particles are carried horizontally in the umbrella cloud. As it evolves away from the source, it becomes less "strong" and is not able to transport particles.
Large particles leave the umbrella cloud first and fall close to the vent, while finer particles are carried farther away, creating the tephra deposit.

Strong plumes

These cartoons assume a strong plume with a typical mushroom-shaped morphology. However, keep in mind that other types of transitional or weak plumes exist. If the vertical rate of ascent of the plume is not sufficiently high, the plume can collapse and create pyrocalstic density currents.

Modeling choices

Some models attempt solving all physical processes taking place in time and space. These models are complex and (theoretically) have a higher accuracy. However, their use is often impeded by:

The large number of input parameters required to solve all the physics.
The high computational time required to run them.

Alternatively, other models adopt assumptions that allows them to simplify some physical processes. Although their (again, theoretical) accuracy is lower, these models:

Require less input parameters, which facilitates their use.
Are faster to run as they do not need to solve as many equations.

What model is better for hazard assessment?

Is a complex numerical model always better than a simpler model (e.g., empirical or probabilistic)? Well, not necessarily, it all depends on context.

When a high accuracy is required, complex numerical models are generally better. However, they usually require a large number of input parameters and an important computing power. Therefore, they are not suited for probabilistic analyses as their computational time is too large, and they are therefore mostly used for deterministic modeling.

Conversely, simpler models might not capture all the subtleties of the underlying processes, but are easier to use and require less computation cost. Therefore, they can be used for probabilistic modeling and are often used for long-term hazard assessments.

The Tephra2 model

In order to assess the hazard associated with tephra accumulation, we will here use the Tephra2 model¹. Tephra2 uses an analytical solution to the advection-diffusion equation. In other words:

Tephra2 simplifies the atmospheric transport of particles, thanks to which the tephra accumulation can be computed rapidly.
Numerous of input parameters related to atmospheric transport are parametrised into a few parameters.
Computation time is fast.

These specificities make Tephra2 highly suited for probabilistic hazard assessment purposes.

Tephra2 requires three different inputs (Figure 1):

A computation grid → the spatial resolution of Tephra2 outputs is set by the grid resolution. A coarse grid will result in longer computation time than a fine one.
Wind conditions during the eruption → specifically wind direction (\(^{\circ}\)) and speed (\(m/s\)).
Eruption source parameters → initial eruption conditions to the model.

Other models

The design of Tephra2 prevents it to compute atmospheric concentration, for which 3D models are usually required. Such models include Ash3D, which can be used as an online tool after registration, or Fall3D, available here.

Eruption source parameters

Let's introduce an important concept that we will use throughout the exercise: Eruption source parameter or ESP:

Eruption source parameters

ESP are the initial conditions required by a given model to describe specific physical processes.

ESP are therefore synonyms of initial conditions. Why a different name then?

Let's look at the main ESP required by Tephra2:

ESP	Description
`mass`	Total tephra mass erupted during the eruption, in \(kg\).
`height`	Plume height, in \(km\).
`TGSD`	Total grain-size distribution (TGSD) → controls the content in coarse vs fine particles, in \(\phi\) units →\(=-log_2(diam.\ [mm])\).
`MER`	Indirectly used in `Tephra2`, the mass eruption rate (MER; \(kg/m^2\)) is estimated from `height` and `wind speed`.

Do you notice anything?

→ All these EPS are quantities that can be directly measured in the field!

Therefore, we, as Physical volcanologists/Geologists/Earth Scientists, can directly translate geological information into model inputs in the perspective of our knowledge of the underlying processes. Thanks to that, we prevent over-fitting our model (i.e., tuning initial conditions to fit a desired output) or using a black-box approach.

Food for thoughts

Many different models for tephra dispersal and deposition exist, some of which can be found here, or in the report of the 2021 Ash and Aviation Workshop report. It is again important to chose the appropriate model for a given context.

For instance, Tephra2 is suited for probabilistic hazard analyses, but being time-independent, it cannot capture the spatio-temporal evolution of the ash cloud. It is therefore more suited for preparedness rather than crisis management.

Conversely, Fall3D² is a 3D, time-dependent model that is able to describe the evolution of the ash cloud in 4D. Its computational costs limits its probabilistic applications, but it is suited to monitor the evolution of a crisis in near-real time.

As a result, the same remarks as those made for lava flow models hold for tephra hazard assessment: It is important to understand the benefit and limitations of each model in order to choose the most appropriate one.

Similarly, various models will require different types of ESP, some of which can be directly estimated from field studies, others that require additional laboratory analyses or plain guessing. Here, we use the Tephra2 model as its main ESPs can be estimated in the field. In the next section, we will look at how to turn ESP into eruption scenarios.

Summary

This section provided an introduction to the modeling of tephra dispersal and deposition. We reviewed:

The main physical volcanology aspects involved in the problem.
Various modeling approaches available to solve it.
Introduced Tephra2 and its critical ESP.

In the next section, we will look at the philosophy behind using Tephra2 for probabilistic hazard modelling.
