Probabilistic tephra hazard modelling

Tephra describes all fragments of rocks of any size or composition that are injected into the atmosphere during explosive volcanic eruptions. Although tephra is not one of the main causes of casualties in the context of volcanic crisis (tephra are responsible for only 2% of all volcano-related deaths), it can cover wide areas and disrupt a broad range of socio-economic activities. Examples are health problems, collapse of roofs, death of vegetation, blockage of roads and disruption of airports and air traffic. Some hazardous tephra thresholds are shown in the table below. These ranges are wide due to the range of typologies of crops, vegetation, buildings that can be impacted, as well as external factors (e.g. time of the year for crops). Refer to the references provided in the previous lesson for more information on how to quantify physical vulnerability to tephra fallout.

Element	Threshold (\(kg/m^{2}\))
Airport closure	1
Perturbation of the road network	1-100
Impact on crops	5-150
Impact on vegetation	5-1500
Roof collapse	100-300

Objectives

The aim of this exercise is to compile a probabilistic hazard assessment for tephra accumulation for a future eruption at La Palma. Probabilistic modeling will be performed using the model Tephra2 (Bonadonna and Houghton, 2005)¹ and the Matlab toolbox TephraProb (Biass et al., 2016)².

In this exercise, you will use the user-friendly Matlab toolbox called TephraProb to:

Analyse the eruptive record and perform some basic frequency analyses.
Analyse the wind patterns in a region and put this in the perspective of the hazard assessment.

Running the full workflow for probabilistic hazard assessment in the computer lab is complicated by technical issues (e.g., computation time, compilation of source libraries). Therefore, we have already ran the scenario for you. You will nevertheless:

Learn how to interpret the sampling of ESP.
Analyse the hazard outputs.

TephraProb

For more information about TephraProb, you can refer to the:

Video tutorial.
Updates on the code's website.

Getting started

Due to the logistics of installing Matlab on PC's, we might encounter some issues. Throughout the exercise, you will see tabs similar to the one below. If you have access to Matlab and can use TephraProb, use the With TephraProb tab. Otherwise, we have extracted the figures required for the exercise in the Without TephraProb tab.

With TephraProbWithout TephraProb

Make sure Matlab and TephraProb are setup according to this guide

Just sit tight for now!

Hazard assessment

This exercise is structured in 3 parts:

Analysing wind patterns at la Palma using the EMCWF ERA-5 database.
Defining an eruption scenario and associated ESP.
Analysing the hazard output.

Exercise

Please answer the question sheet and submit it back to Moodle.

Wind data analysis

In order to take into account the aleatoric variability of atmospheric conditions in the hazard assessment, a large population of wind profiles is required from which a different wind profile is randomly sampled at each model run. The atmospheric database used here is the EMCWF ERA-5 database.

Downloading atmospheric data takes time - we have therefore already prepared the dataset for you. The dataset contains 5 years of wind for the period 2017-2021, providing 4 wind profiles per day at a resolution of 0.25 degrees (e.g., ~28 km at the equator) above La Palma.

Wind population

For the purpose of the exercise, we are using 5 years of wind data, which facilitates file transfer and speed up analyses. Keep in mind that we usually use larger populations for real applications (typically more than 10 years depending on the variability in a given region).

Analysing wind patterns

You can now display wind profiles. We use two formats to analyse wind conditions:

Wind profiles show wind velocity and wind direction as a function of altitude. Wind profiles can be plotted either separately (e.g., one wind profile per year or per month) or averaged (e.g., mean ± standard deviation).

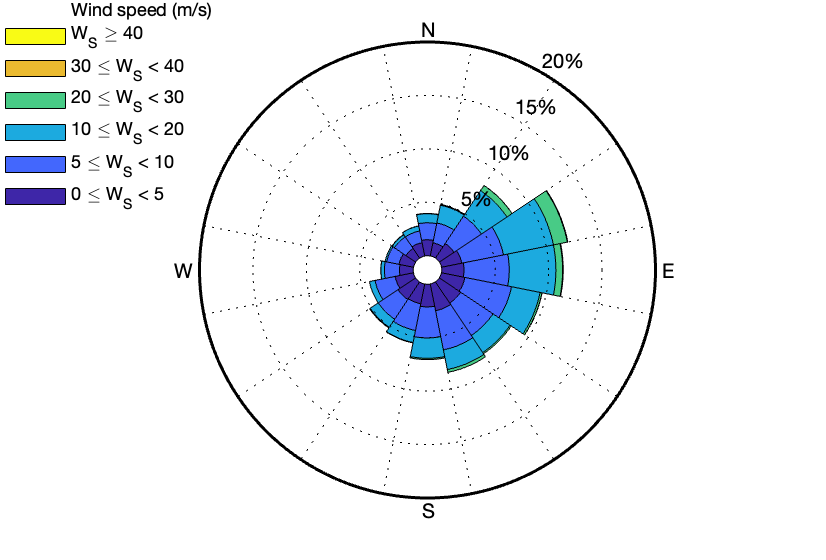

Wind roses show the probability (concentric circles) of the wind blowing in each direction [0 - 360 degrees]. Colours indicate wind velocity. Wind roses are plotted for a given elevation, so explore a few.

Keep your eyes opened for seasonal trends in both wind direction and speed.

With TephraProbWithout TephraProb

On the main TephraProb window, click Input>Wind>Analyze wind
Select the wind.mat file located in WIND/CumbreVieja_1721/
A new panel opens, on which you can explore wind profiles either using wind profiles or wind roses.

Wind profiles

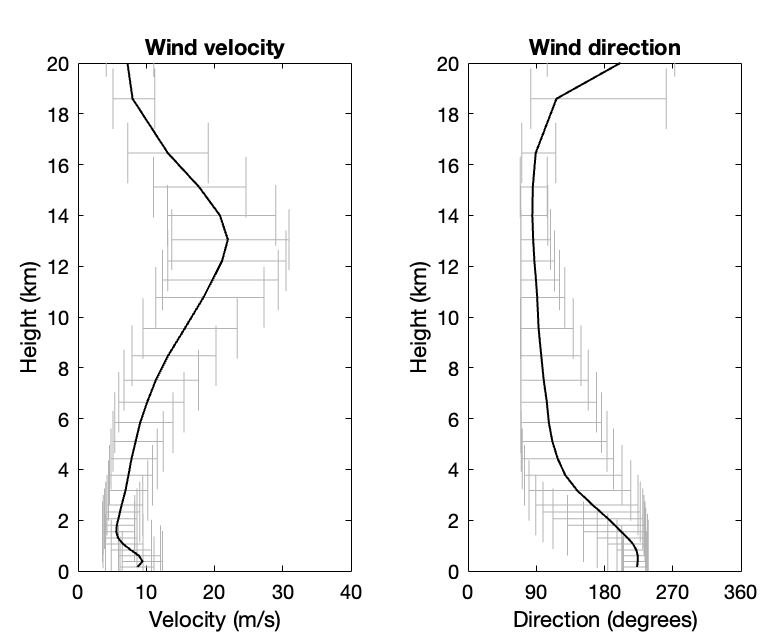

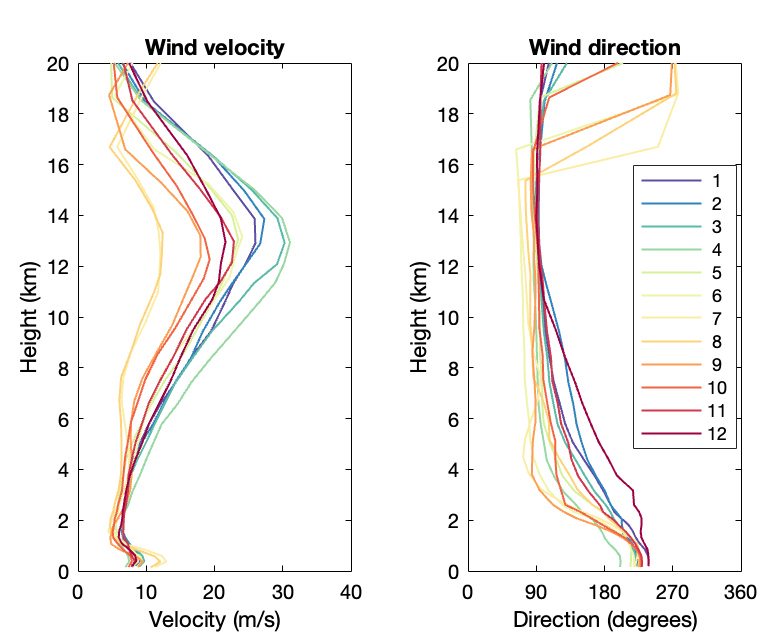

height — Average wind profiles for the period 2017-2021.

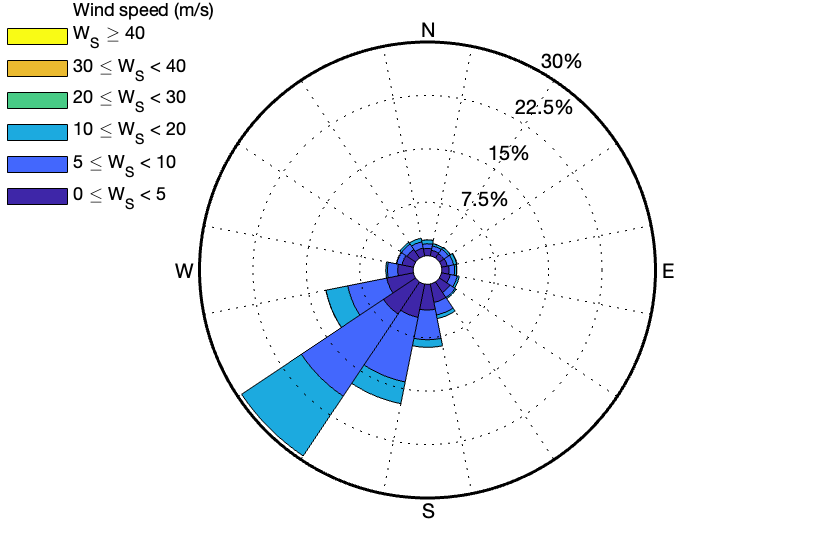

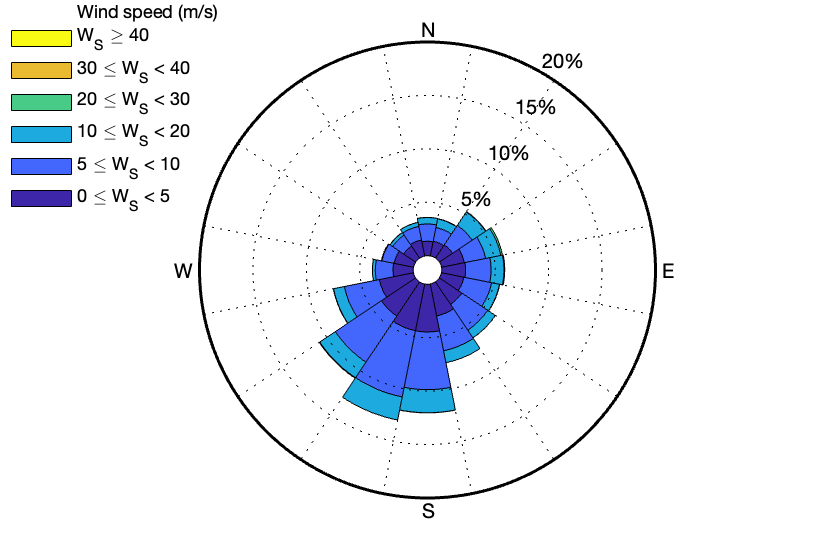

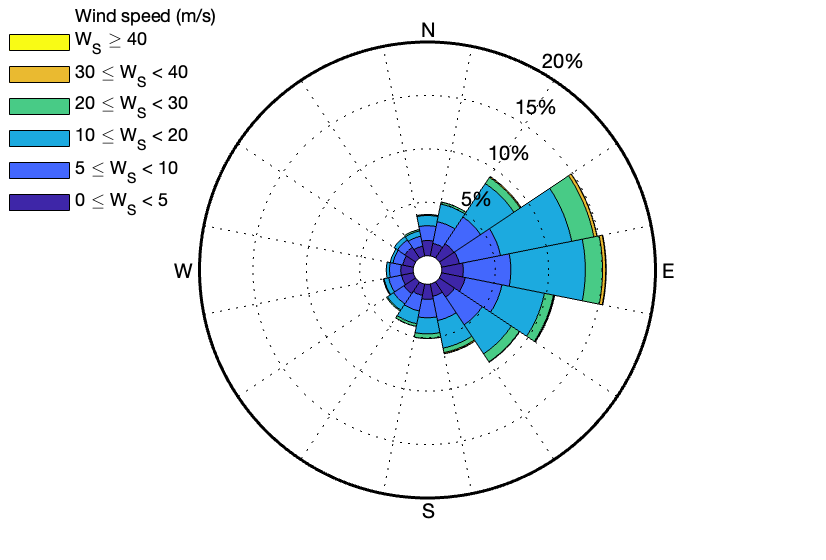

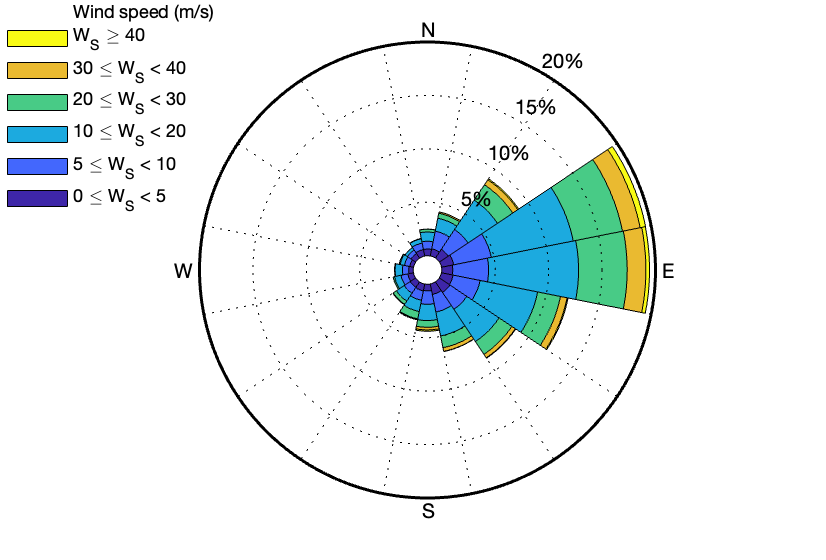

Wind Roses

Question 1: Wind conditions

Visualize these wind patterns in the context of a hazard assessment. What is the main wind direction below 5 km?
Can you observe a variability in wind patterns as a function of the month? If yes, is it gradual or do you observe two distinct wind regimes?

Eruption scenario

Let's try and forget what we know about the 2021 eruption and put ourselves in this reasoning framework:

We need to assess the hazard associated with tephra accumulation for a future eruption along the Cumbre Vieja rift.
From the historical record, most eruptions are VEI 2. However, since what we observed in the field deposits seems larger than VEI 2 eruptions, we decide to focus on a VEI 3 eruption.
However, the deposits we observed do not look like short-lasting, subplinian VEI 3 eruptions. We suspect that these eruptions were less intense and longer-lasting. We therefore model an eruption lasting between 3 days to one week with plume heights varying between 1-5 km.
We have no information regarding the grain-size distribution of the observed deposits, and therefore decide to use an analogue eruption to inform us. We chose the 2002 eruption of Etna volcano.

See what we just did? We just defined an eruption scenario! The table below summarises the ESP for our low-intensity VEI 3 eruption.

ESP	Value	Description
VEI	3	Similar to the 2021 eruption
Mass	10\(^{10}\)–10\(^{11}\) kg	Using the volume ranges of a VEI 3 eruption and conversion to mass using a bulk deposit density of 1000 \(kg/m^{3}\)
Height	1-5 km	Low intensity VEI 3 eruption occurring over a few days
Duration	3-7 days	Paroxysmal phase of a longer eruptive sequence
Md\(_\Phi\)	0-1 \(\Phi\)	Center of the grain-size distribution, based on Etna 2002
\(\sigma_\Phi\)	1-2 \(\Phi\)	Spread of the grain-size distribution, based on Etna 2002

VEI and plume height

The VEI scale suggests very approximative indications of plume height for each VEI class. For instance, it suggests heights of 1-5 km for VEI 2 and 3-15 km for VEI 3 eruptions. However, the VEI scale does not include any information about intensity of the eruption (→ duration over which the VEI volume was erupted).

The volume associated with the 2021 VEI 3 eruption was erupted over the course of a few months, but plume heights were in the 1-5 km range rather than the 3-15 km range. Therefore, let's consider here the following plume heights:

VEI 2: 1-5 km.
VEI 3 - low intensity: 1-5 km (→ long-lasting eruption lasting for days/weeks).
VEI 3 - high intensity: 3-15 km (→ intense eruption lasting for hours).

Grain size distribution

For clarity, we haven't touched yet on the concept of grain-size distribution or GSD. This is an important ESP for tephra dispersal as it controls how fine (or coarse) the tephra generated at fragmentation level will be, and therefore will control how far particles will go.

Grain size is expressed in \(\Phi\) units, which is calculated as \(-log_2(d)\), where \(d\) is the particle diameter in \(mm\). In \(\Phi\) units:

A 1 mm-particle has \(\Phi=0\).
Particles coarser than 1 mm have negative \(\Phi\) values.
Particles finer than 1 mm have positive \(\Phi\) values.

In Tephra2 the GSD of the model deposit is considered to be a Gaussian distribution centered on \(Md_\Phi\) (i.e., mean) and varying by \(\sigma_\Phi\) (i.e., standard deviation).

ESP sampling

Now that we have defined the ranges of ESP, TephraProb applies the algorithm below to sample \(n\) sets of ESP. For the sake of the exercise, \(n\) is here set to 250 runs. The figures below summarise the sampling of the ESP.

Plume heightMassDateDurationGSDSampling algorithm


flowchart TD

subgraph sg0 ["Eruption scenario"]

A1["HEIGHT [min, max]"]
C1["DATE [min, max]"]
B1["DURATION [min, max]"]
D1["MASS [min, max]"]

end

subgraph sg1 ["For each run"]

    subgraph sg2 [" "]
        A2["Sample Height"]
        C2["Sample Date"]
        B2["Sample Duration"]
    end



C2 --> C3["Get wind velocity"]
C3 --> E["Calculate MER"]
A2 --> E
E --> F["Calculate simulation Mass"]
B2 --> F

F --> G["Is Mass within MASS [min, max]"]
D1 --> G

end

A1 --> A2
C1 --> C2
B1 --> B2

G --> H1[Yes]
G --> H2[No]

H1 --> I1["Run is valid, move to next one"]
H2 --> I2["Run is not valid, restart"]

Question 2: ESP

Analyse the distributions of sampled ESP. For each ESP, discuss:

From what distribution have ESPs for i) plume height, ii) erupted mass and iii) grain-size distribution been sampled from? (Hint: there are three types of distributions used here: logarithmic, normal and uniform).
What prior knowledge do these three distributions reflect?

Hazard output

Question 3: Probability calculation

The previous module has introduced how to compute exceedance probability for tephra accumulation. Based on the 10 simulations below for pixel \(x,y\), what are the probabilities of this pixel to suffer tephra accumulations exceeding:
- 50 \(kg/m^2\)?
- 100 \(kg/m^2\)?
- 150 \(kg/m^2\)?

Simulation	Tephra accumulation (\(kg/m^2\))
1	115
2	80
3	151
4	65
5	112

Simulation	Tephra accumulation (\(kg/m^2\))
6	156
7	102
8	104
9	85
10	123

Similarly, we also learned how to estimate a typical accumulation associated with a given probability of occurrence. The figure below shows the survivor function for the data in the table above. Estimate the approximative load associated with probability values of:
- 30%
- 70%

Load runs

One single vent was assigned to each of you. For the rest of the exercise, make sure you refer only this one.

If you use TephraProb, let's now load your assigned scenario, where runName goes from vent1 to vent5:

On the main TephraProb window, click File>Open
Select the .mat file located in RUNS/runName/1/

Probability maps

Hazard outputs

You can always refer the previous lesson where we reviewed how the different outputs are compiled from probabilistic hazard assessments.

Probability maps fix a critical value of tephra accumulation (\(kg/m^2\)) to allow the contouring of the spatial probability of exceeding this critical threshold. These maps are useful to see the dispersion of probabilities across an area, but only for one given tephra accumulation threshold at the time. Let's now look at them.

With TephraProbWithout TephraProb

Make sure the scenario for the vent that was attributed to you is loaded (File > Load).
From the main TephraProb window, click Display > Probability Maps.

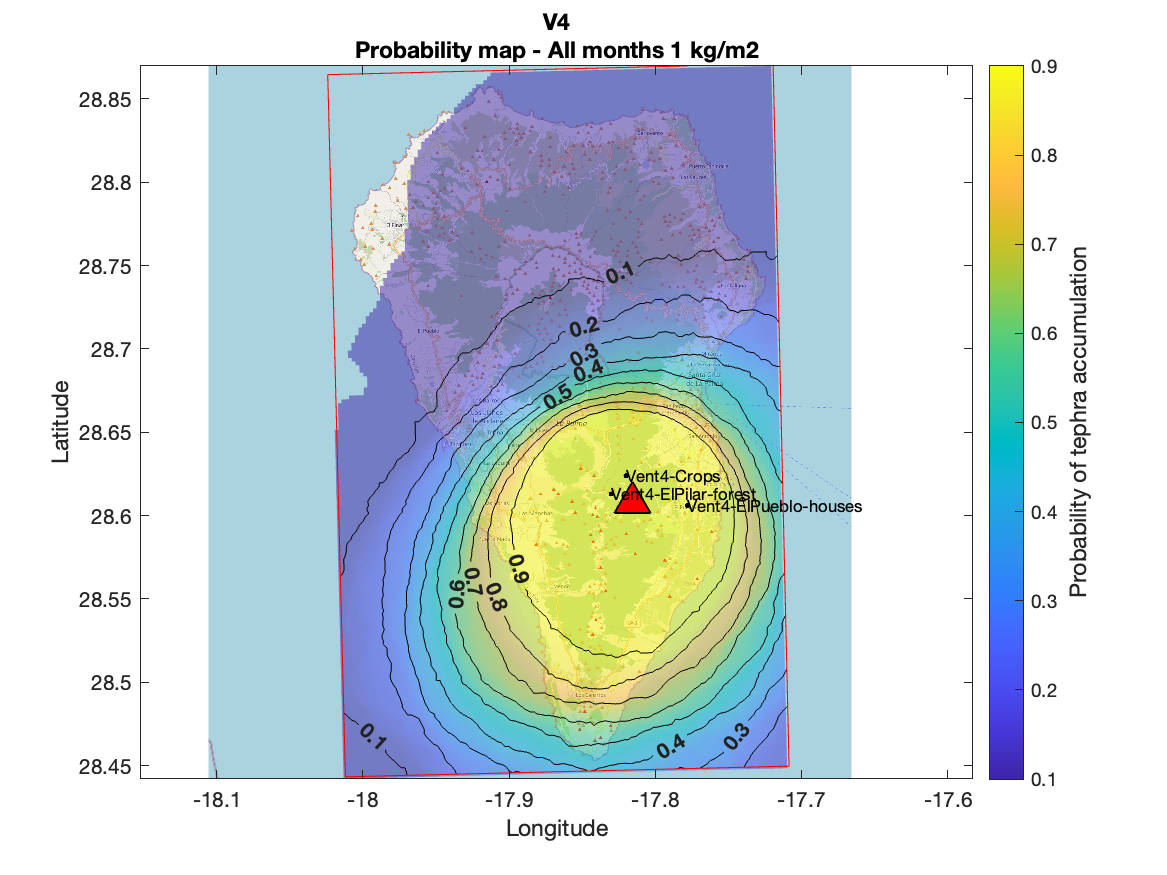

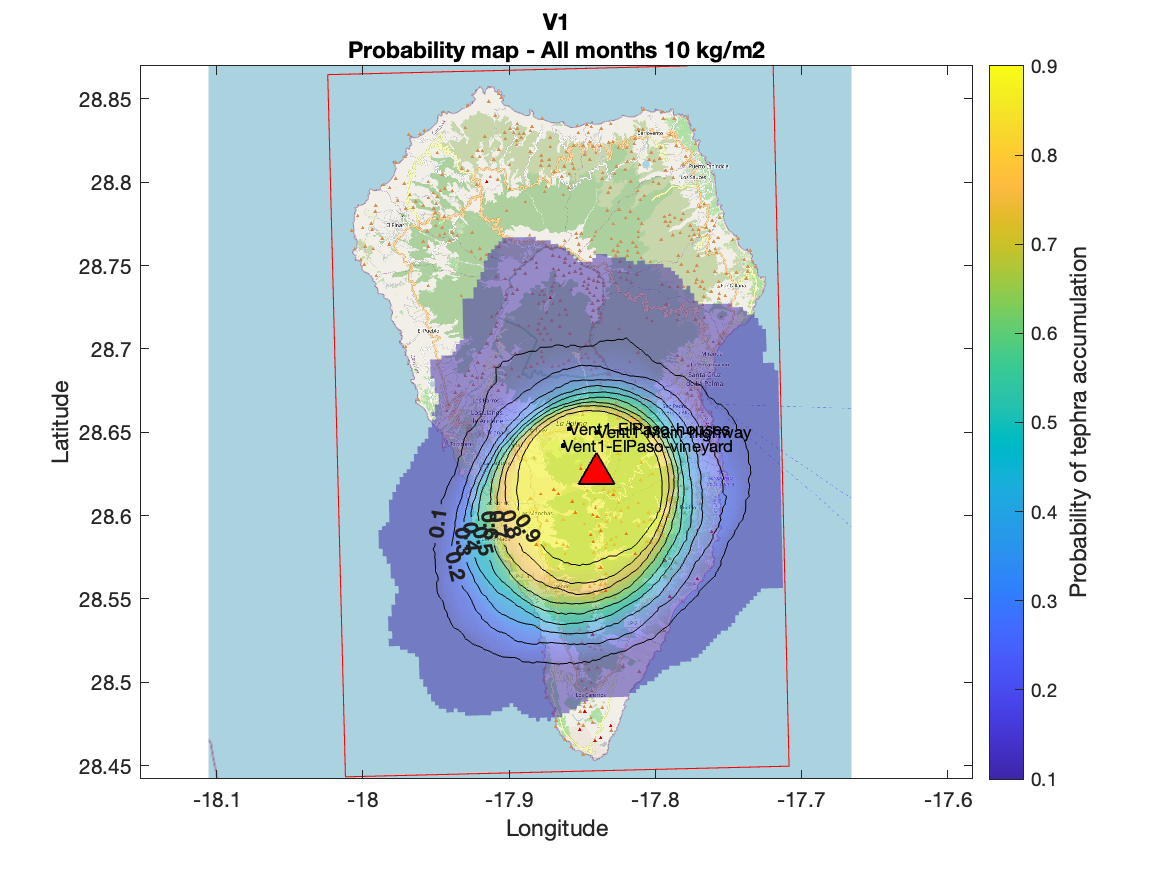

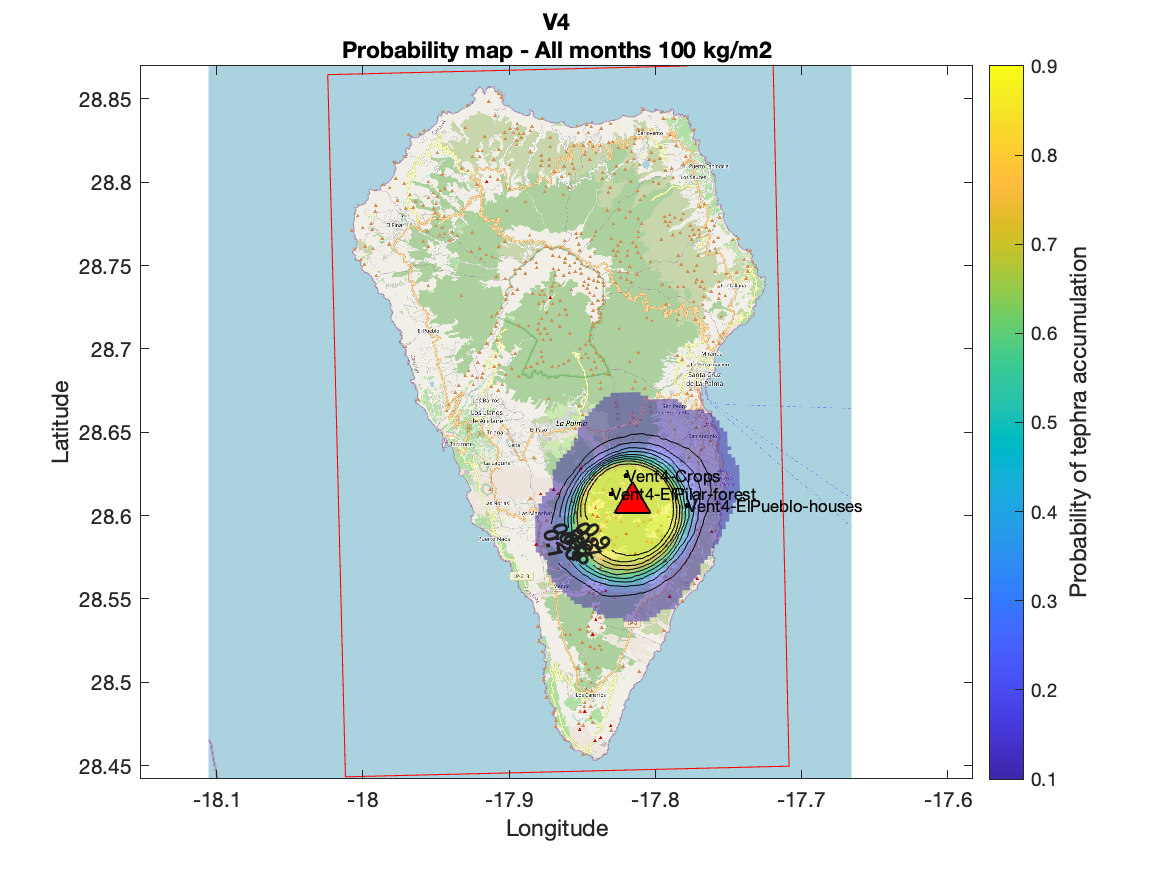

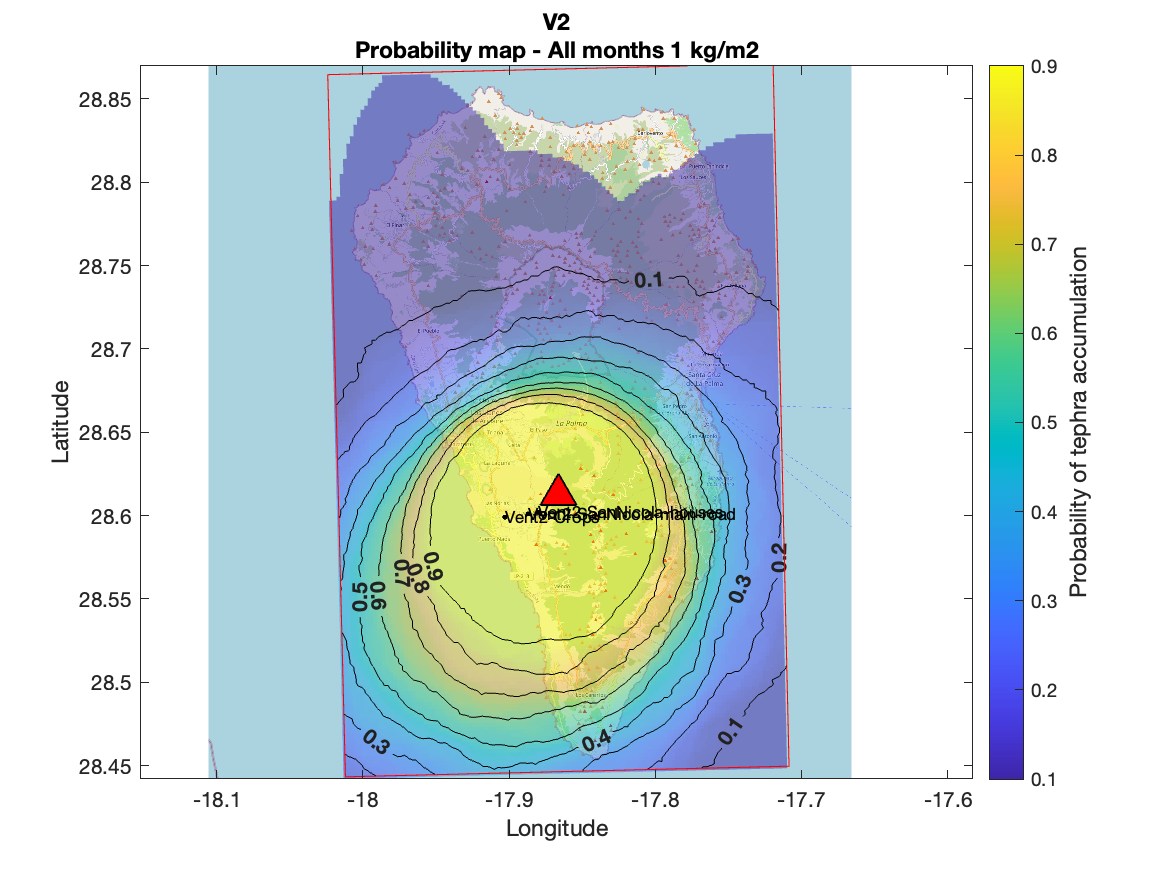

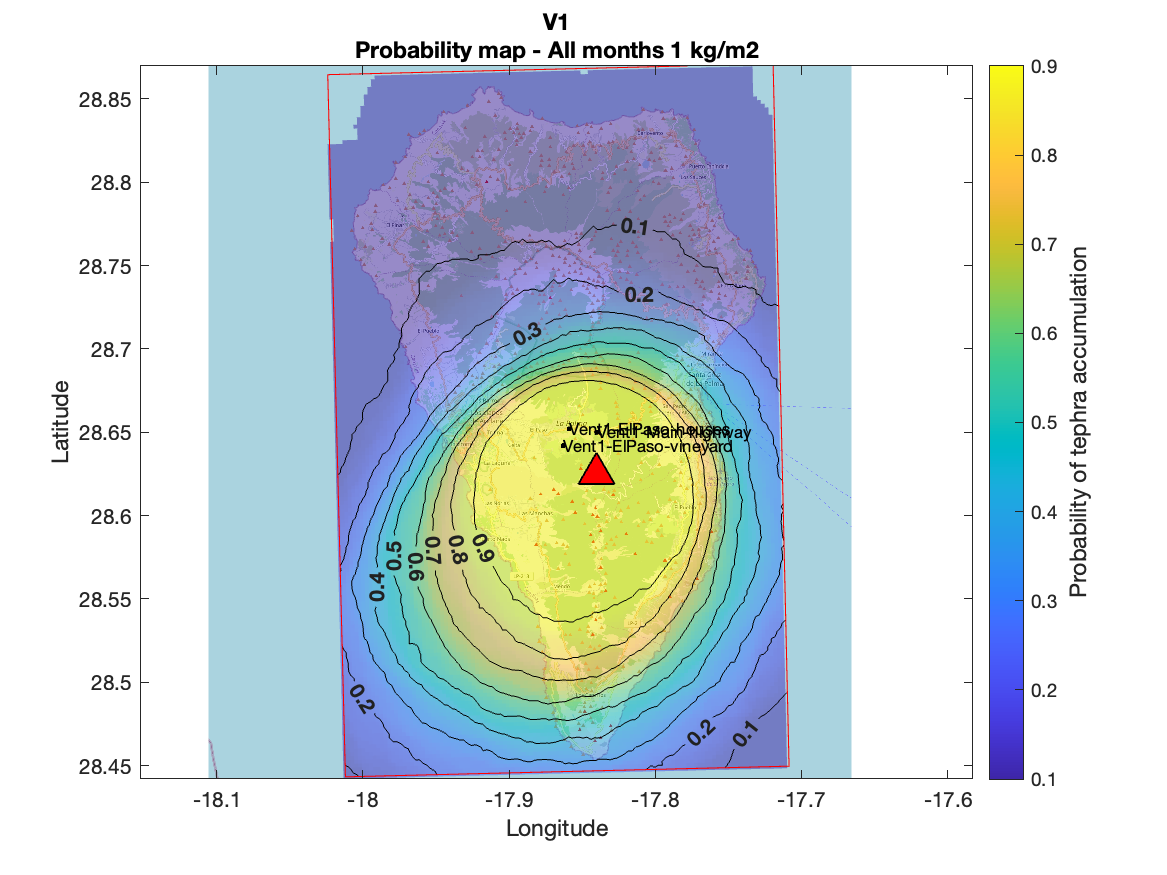

A new window opens, from which you can select pre-defined accumulation threshold (you can select multiple using the Cmd (Mac) or the Ctrl (Windows) keyboard buttons). Do not open all maps! Select only the 1 10, 100 \(kg/m^2\).
Click Ok - Google Earth should now open.
Troubleshooting Google Earth

If Google Earth is in French:
- Google Earth is in French by default. To change the language, go to Outils/Options/General/Parametres de langue and choose your language.
If Google Earth does not open:
- From the main TephraProb window, select File > Preferences and make sure the Show Google Earth option is selected.

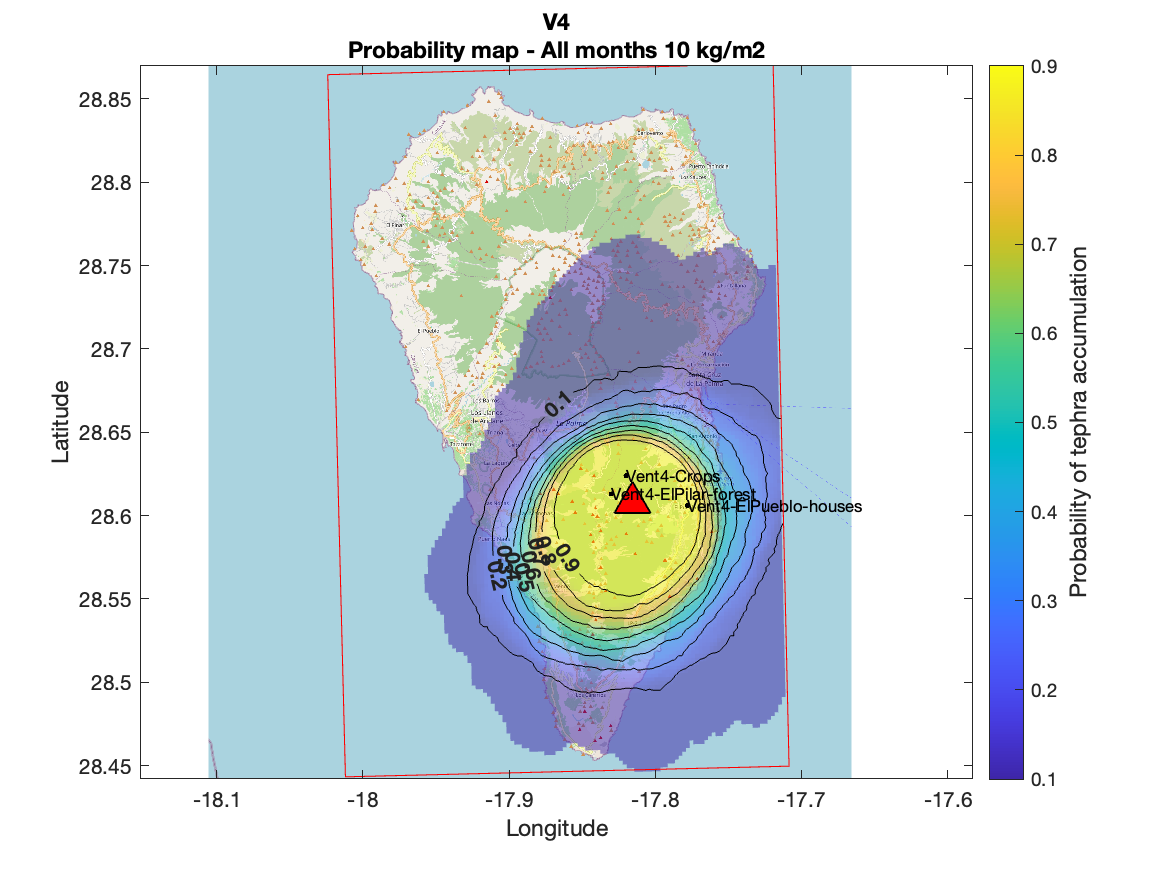

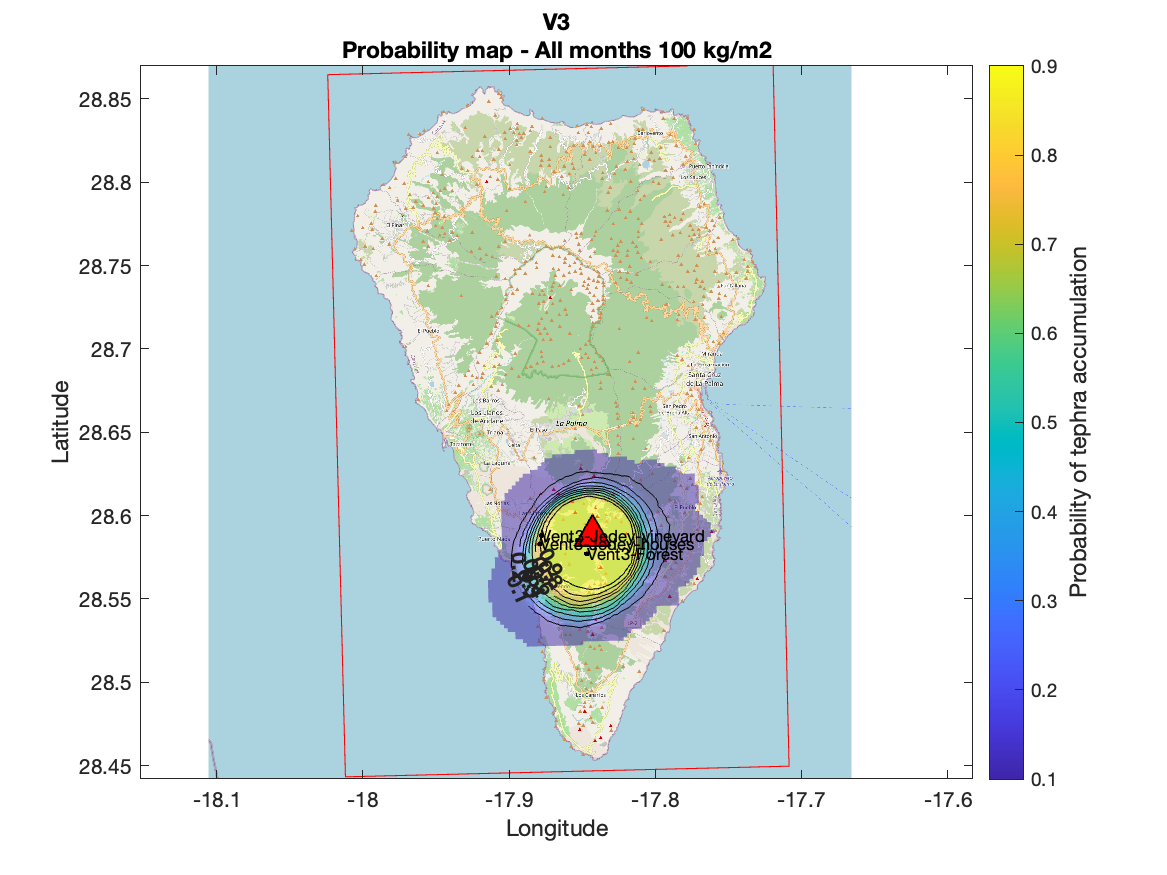

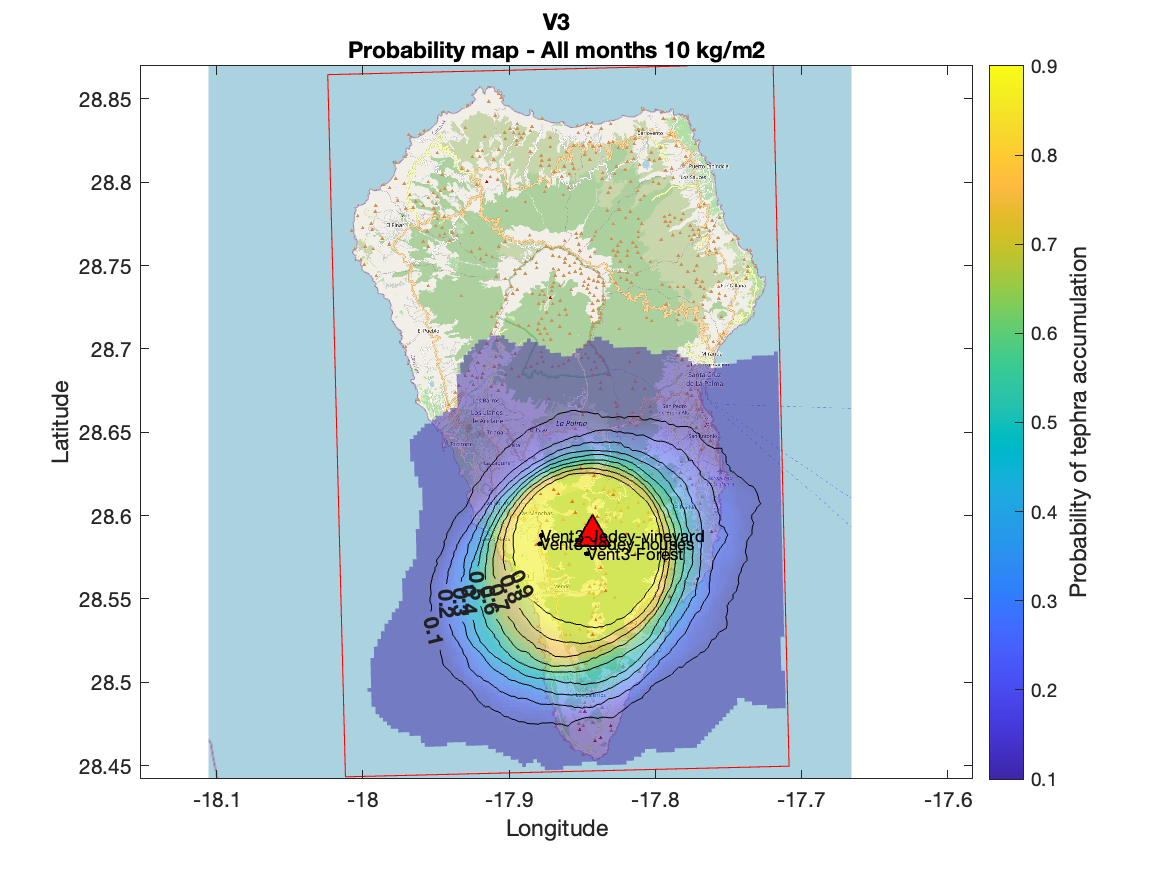

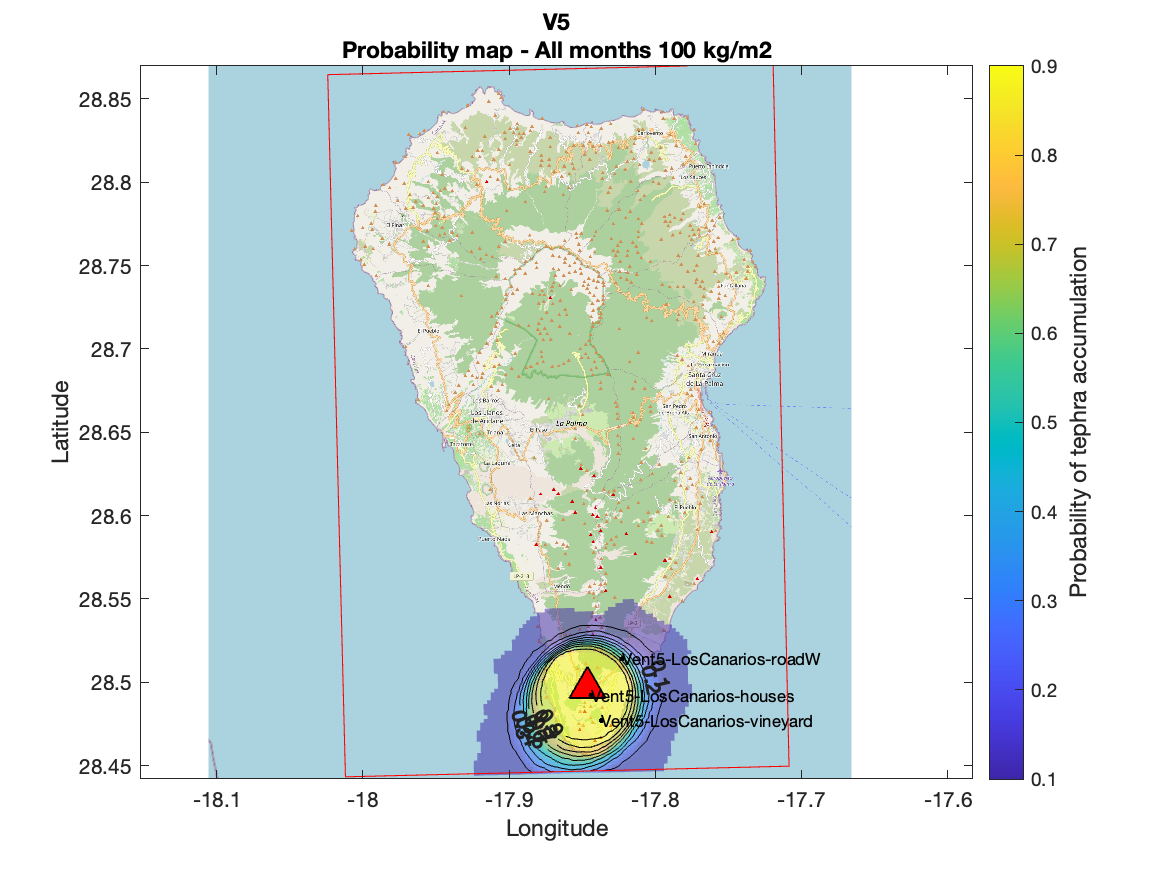

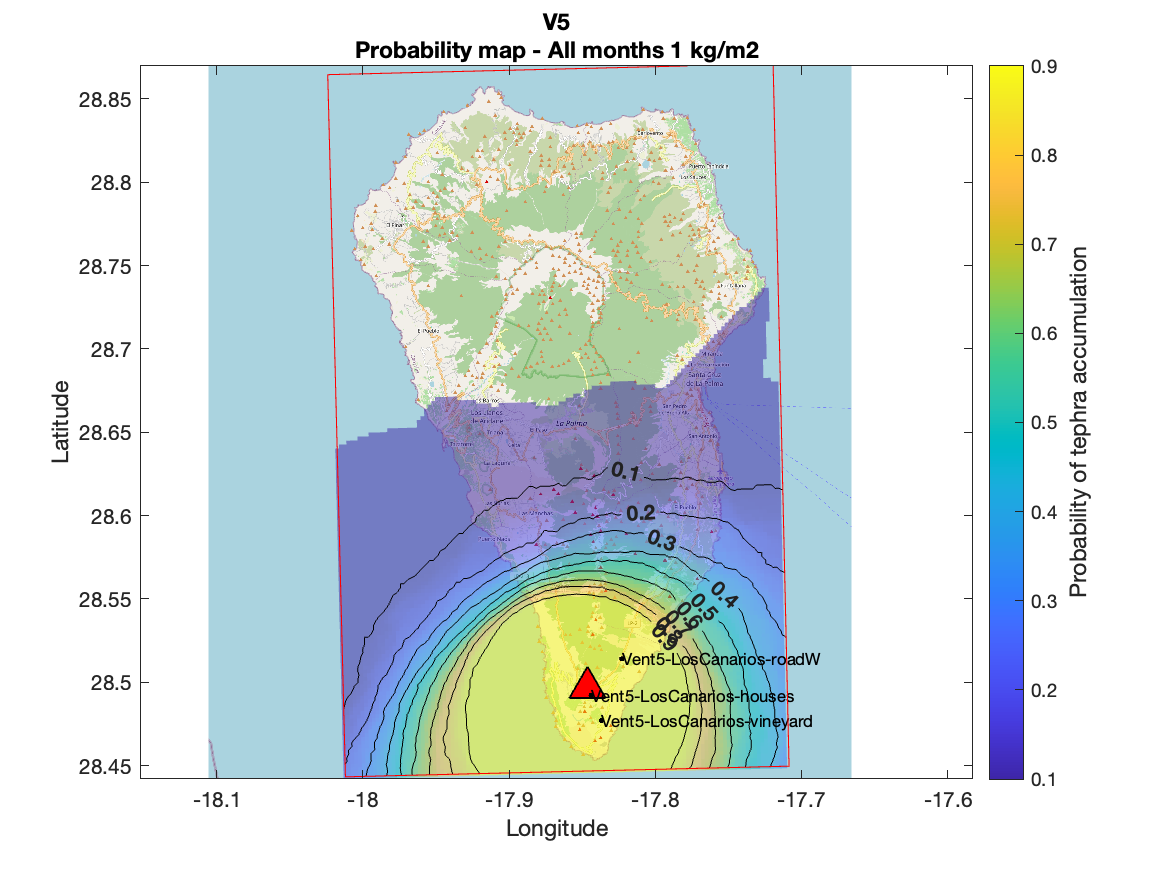

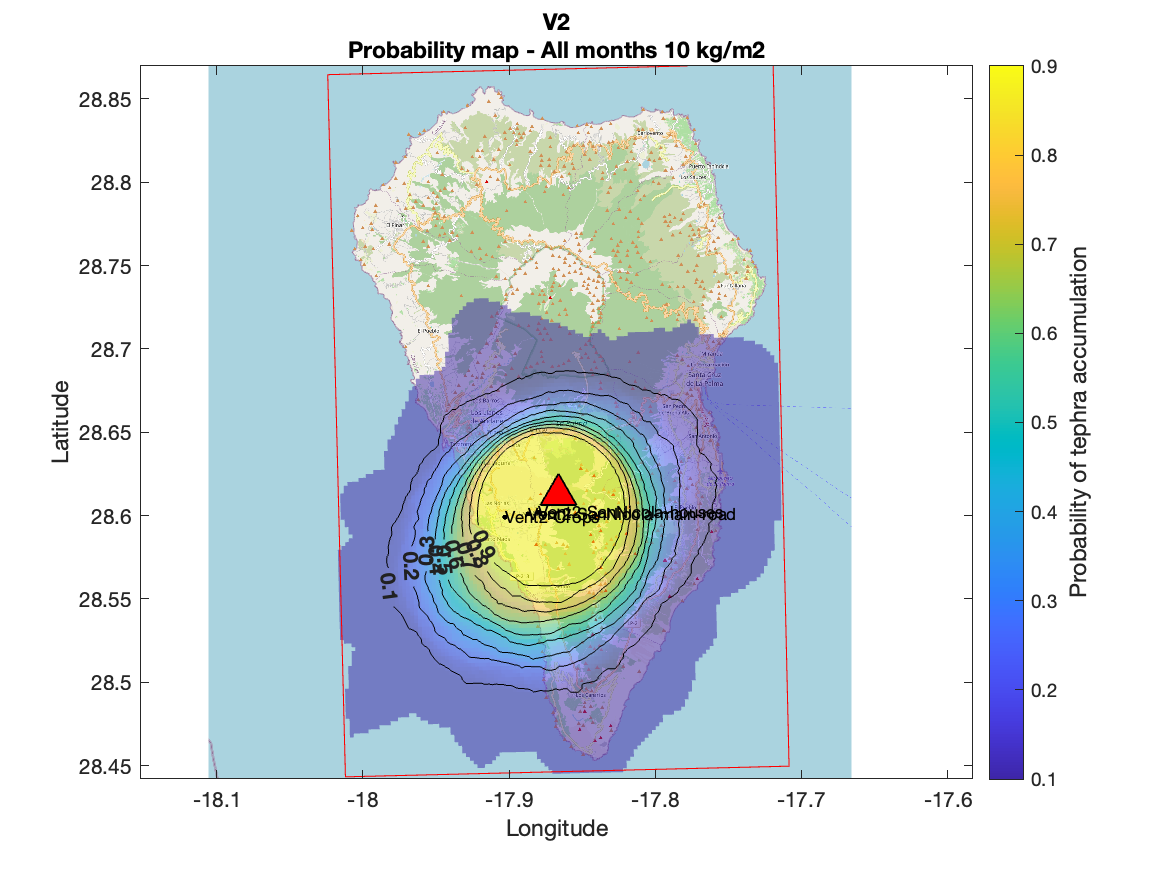

Vent 1Vent 2Vent 3Vent 4Vent 5

Download KMZ file

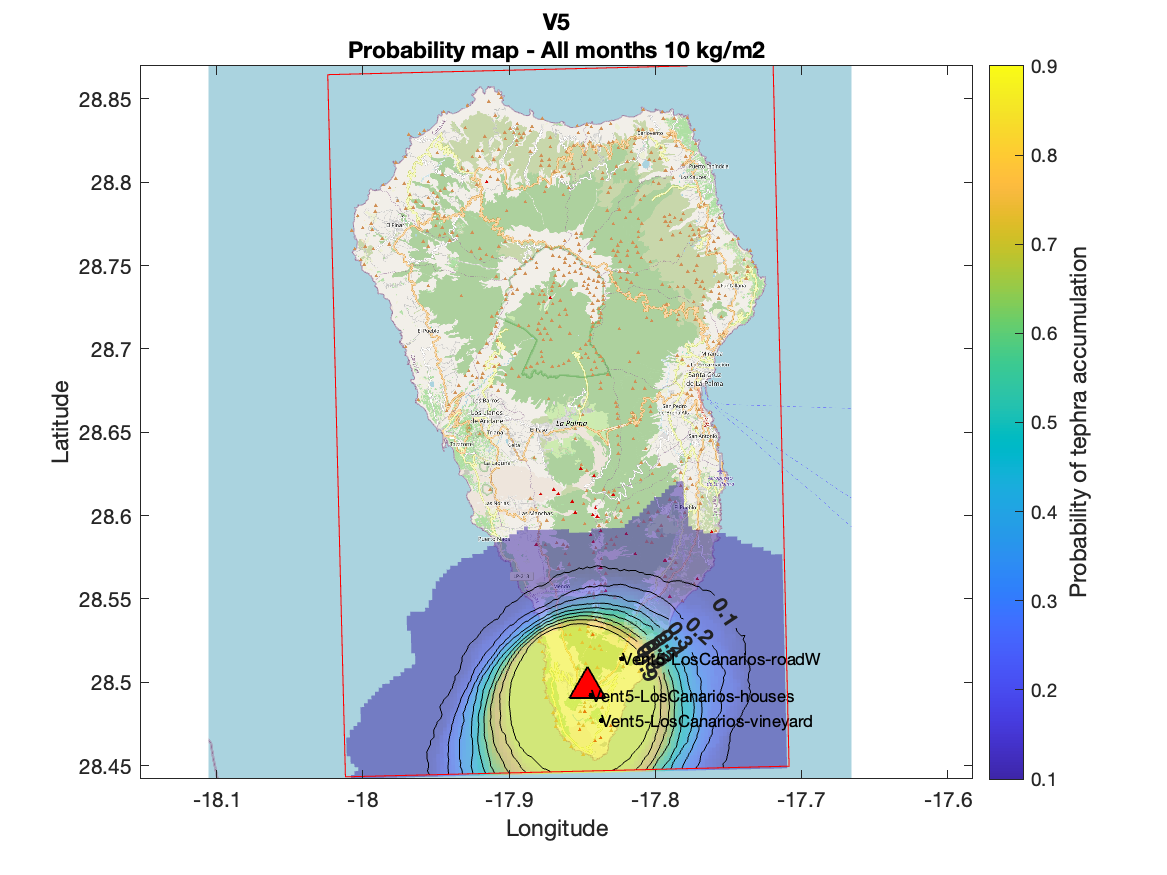

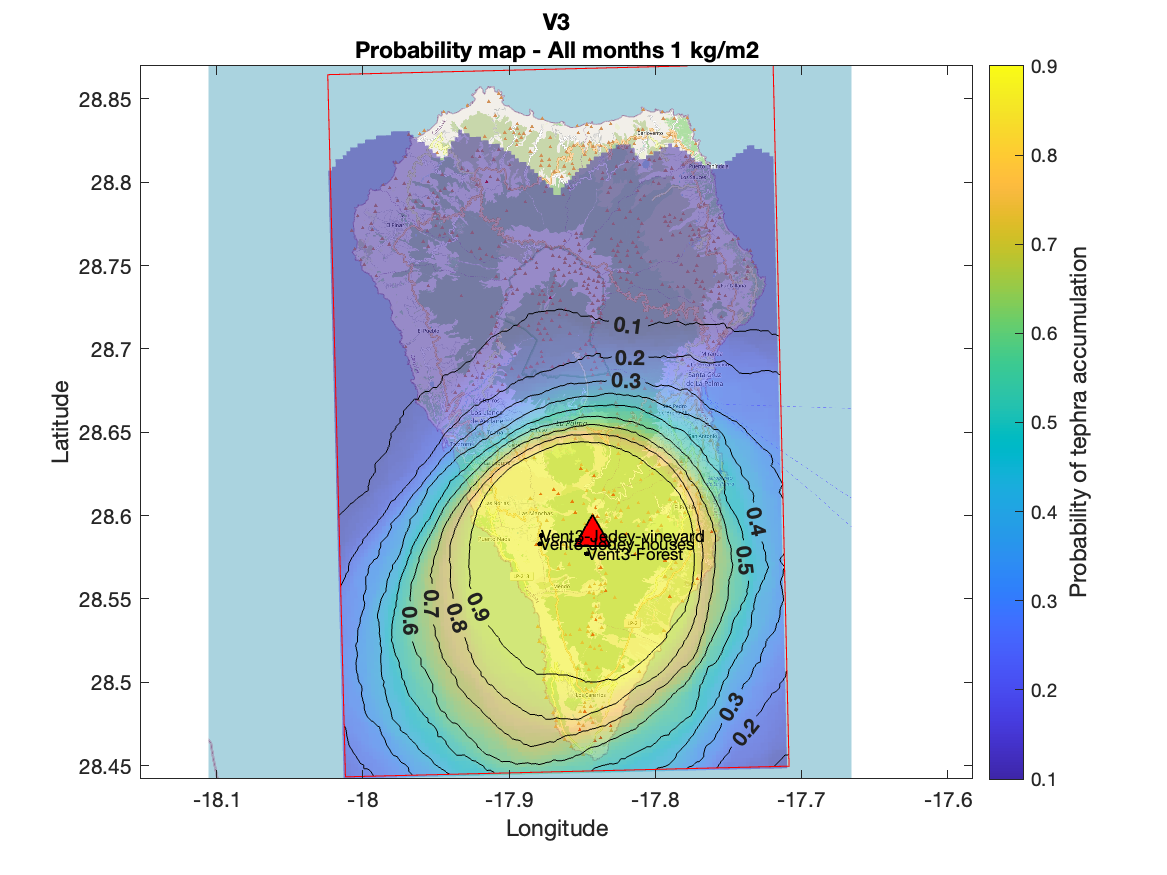

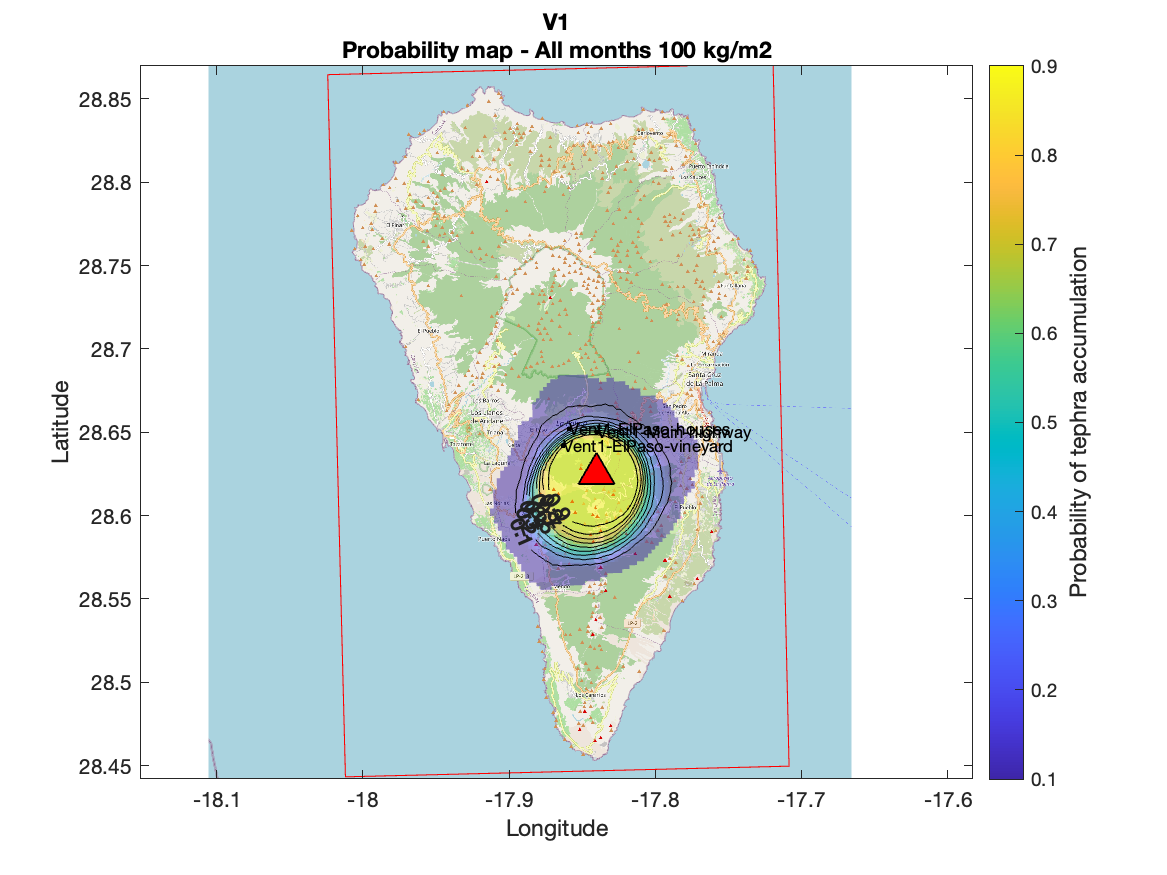

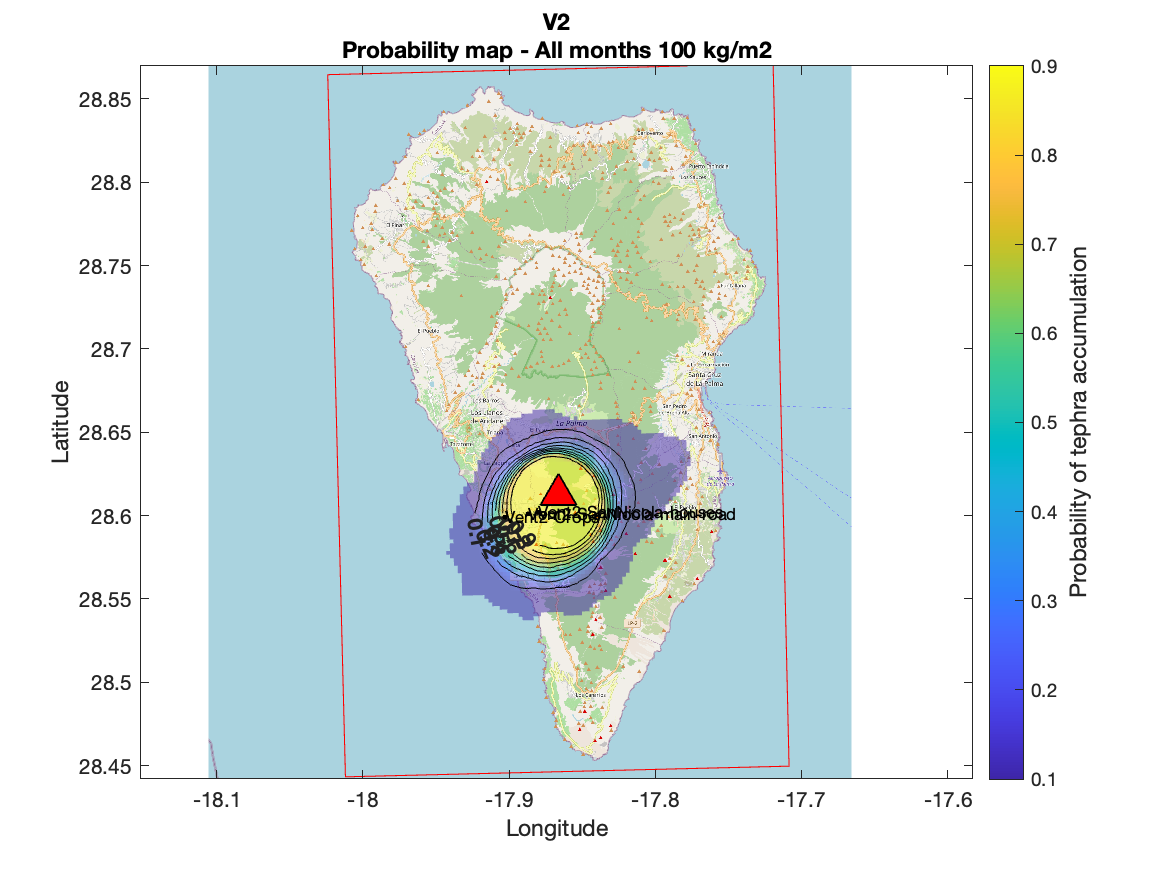

Probability maps

No question to answer here, but take a moment to think about:

In which direction (i.e., downwind cardinal reference) is the hazard associated with tephra fallout most likely to occur?
At each point of the map, can you express exactly the information that is presented?

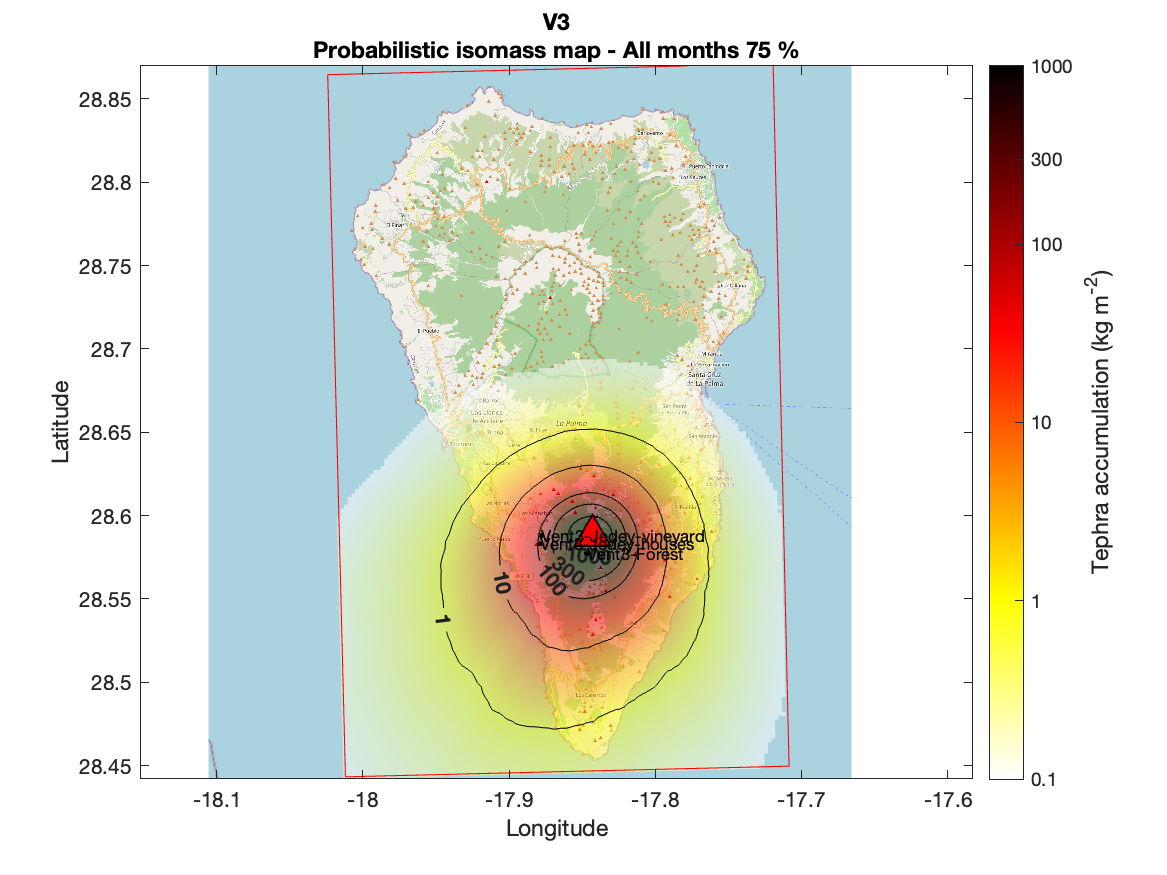

Probabilistic isomass maps

Probabilistic isomass maps fix a probability threshold to represent a typical tephra accumulation given a probability of occurrence of the hazardous phenomenon. The choice of the probability threshold, which can be regarded as an acceptable level of hazard, is a critical aspect that is the resort of decision-makers. Scientists should therefore communicate results from probabilistic isomass maps with care. Plot a few probabilistic isomass maps and analyse them.

With TephraProbWithout TephraProb

From the main TephraProb window, click Display > Isomass Maps.

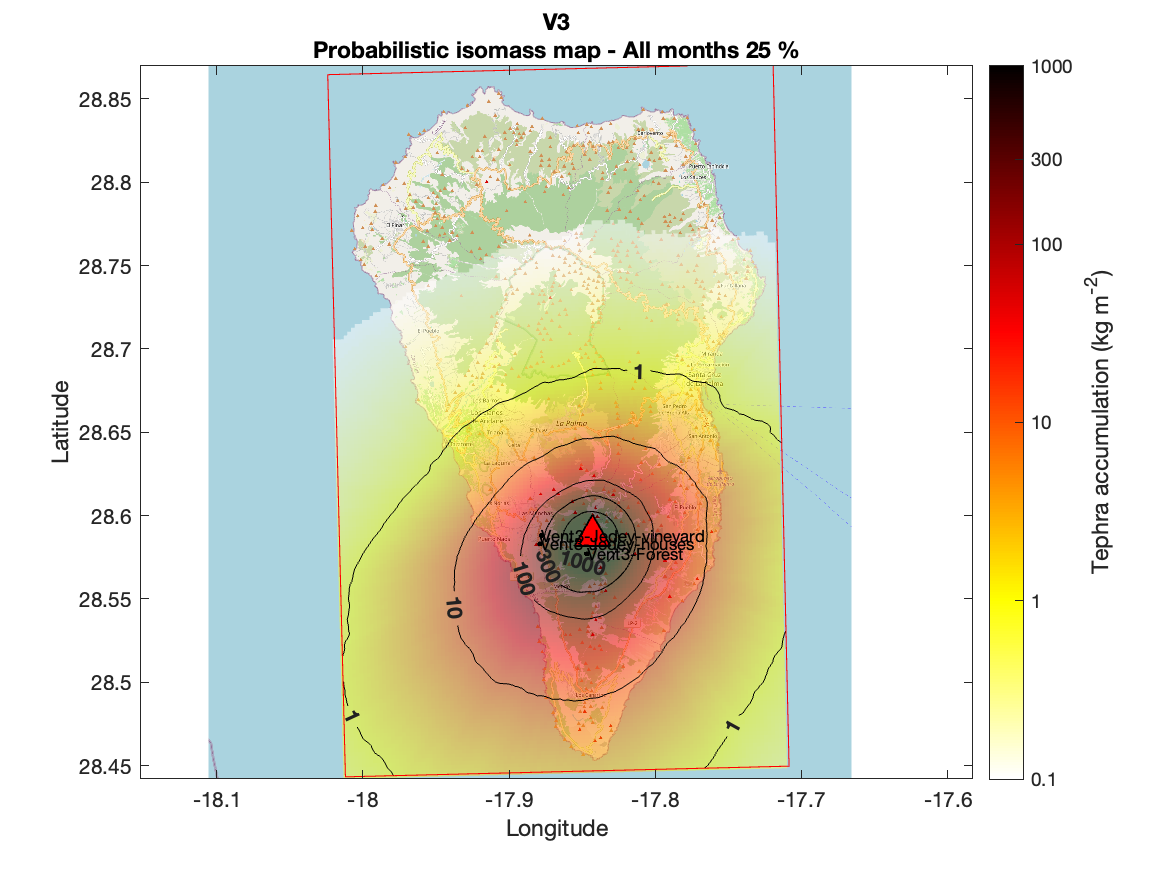

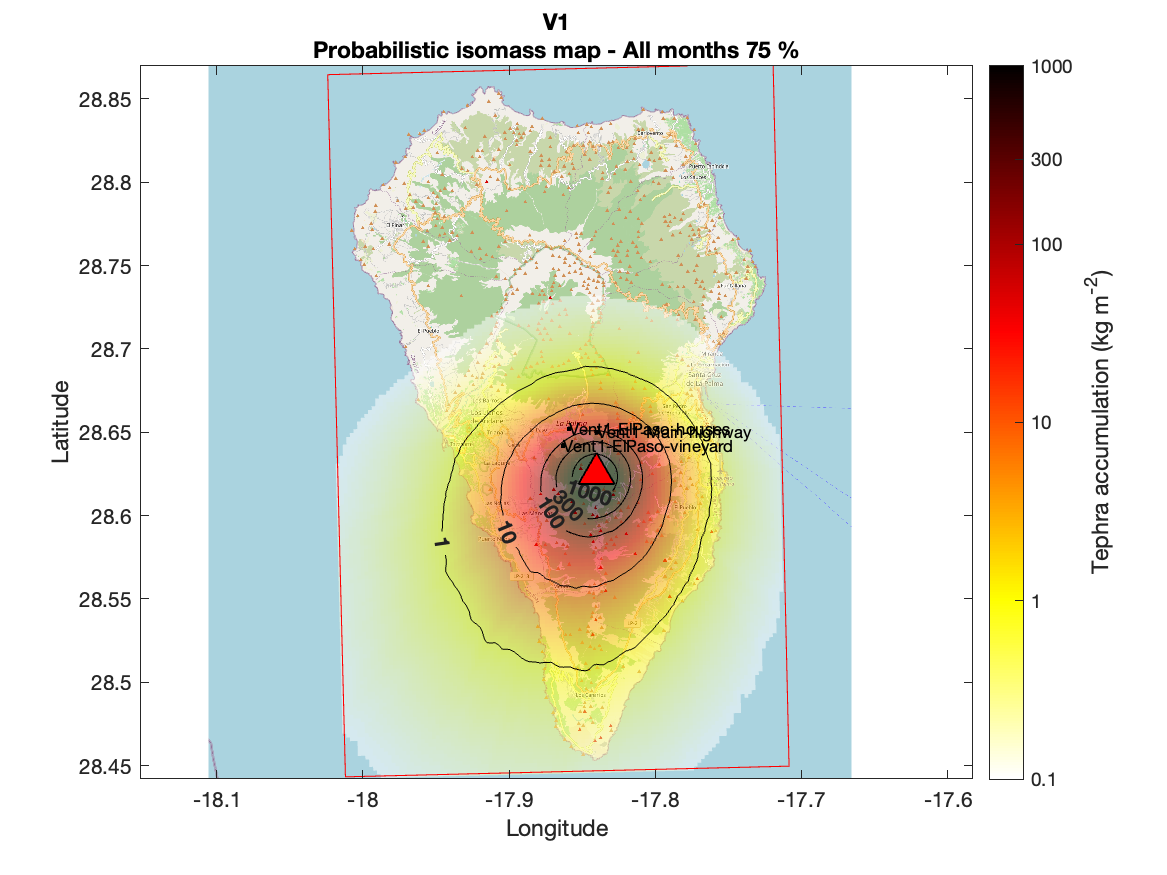

A new window opens, from which you can select pre-defined probability thresholds. Choose the 25% and 75%.
Click Ok - Google Earth should now open.

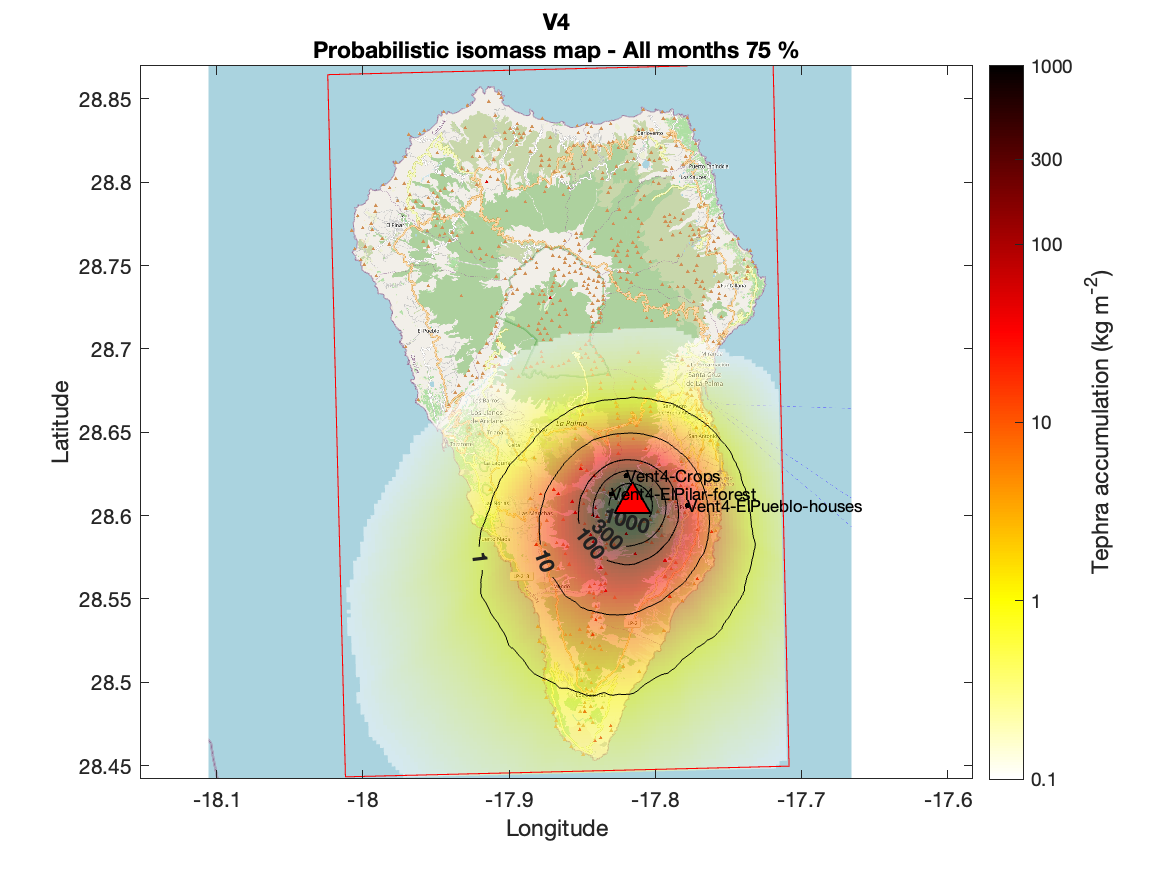

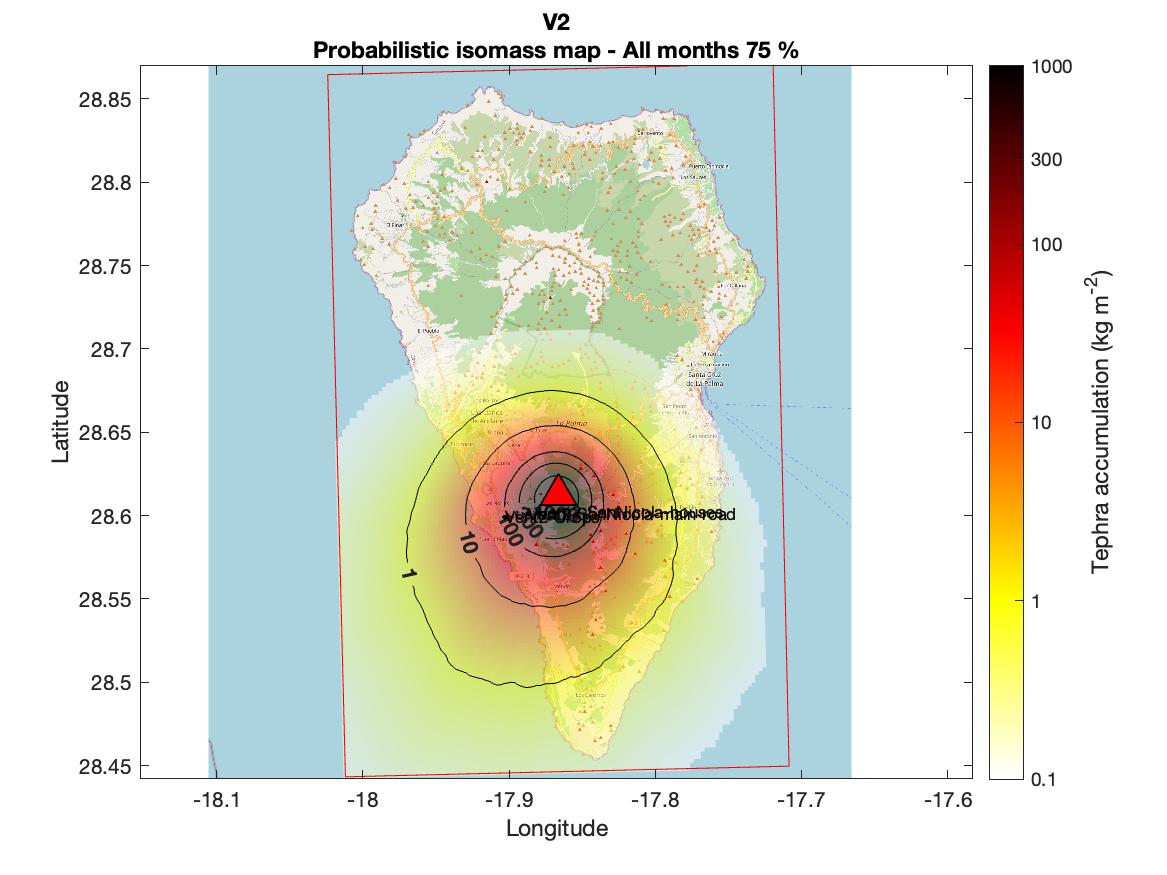

Vent 1Vent 2Vent 3Vent 4Vent 5

Download KMZ file

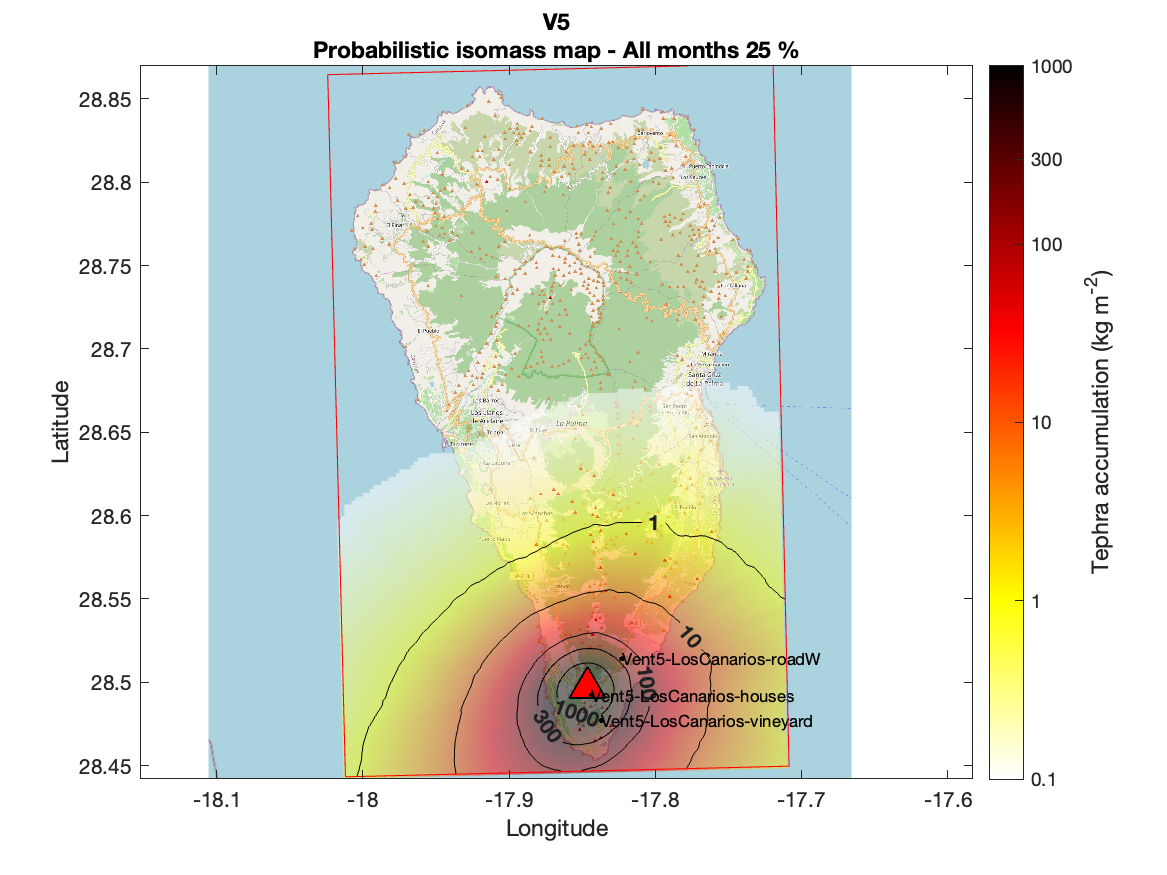

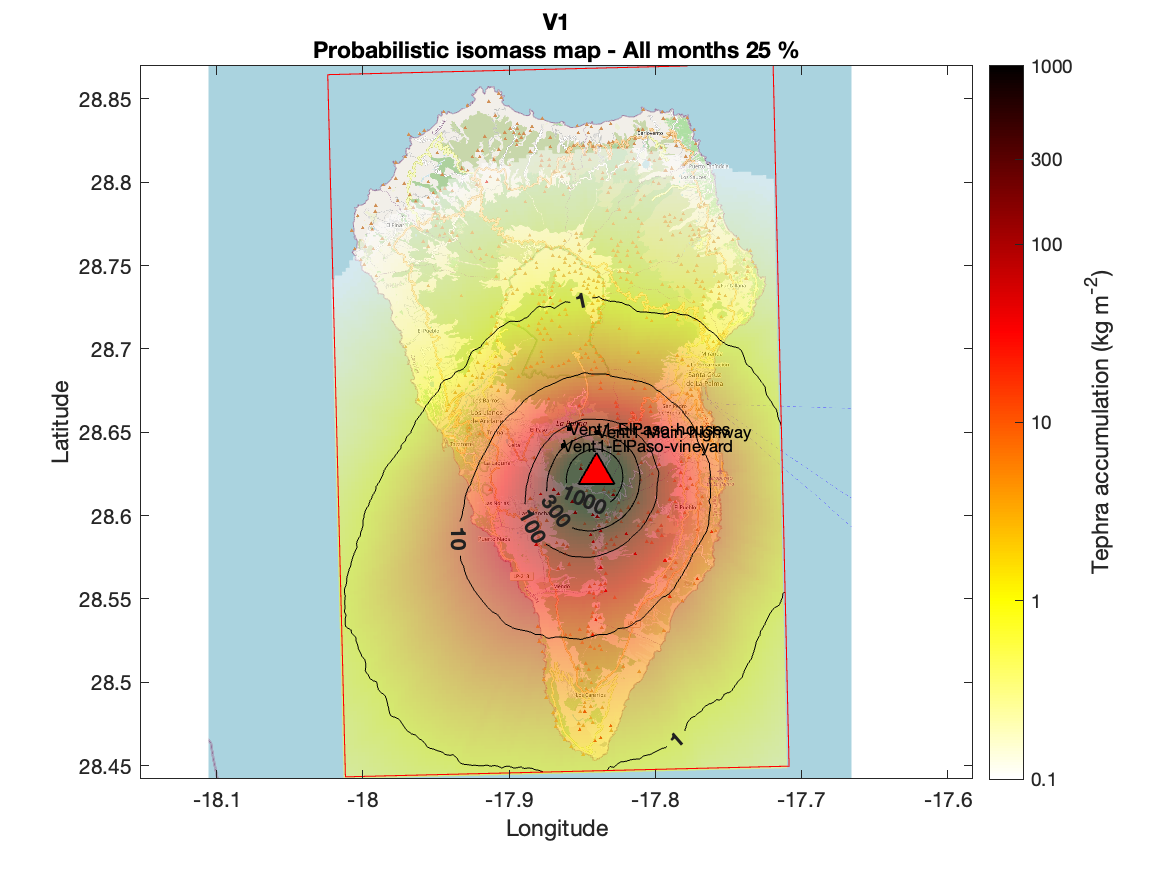

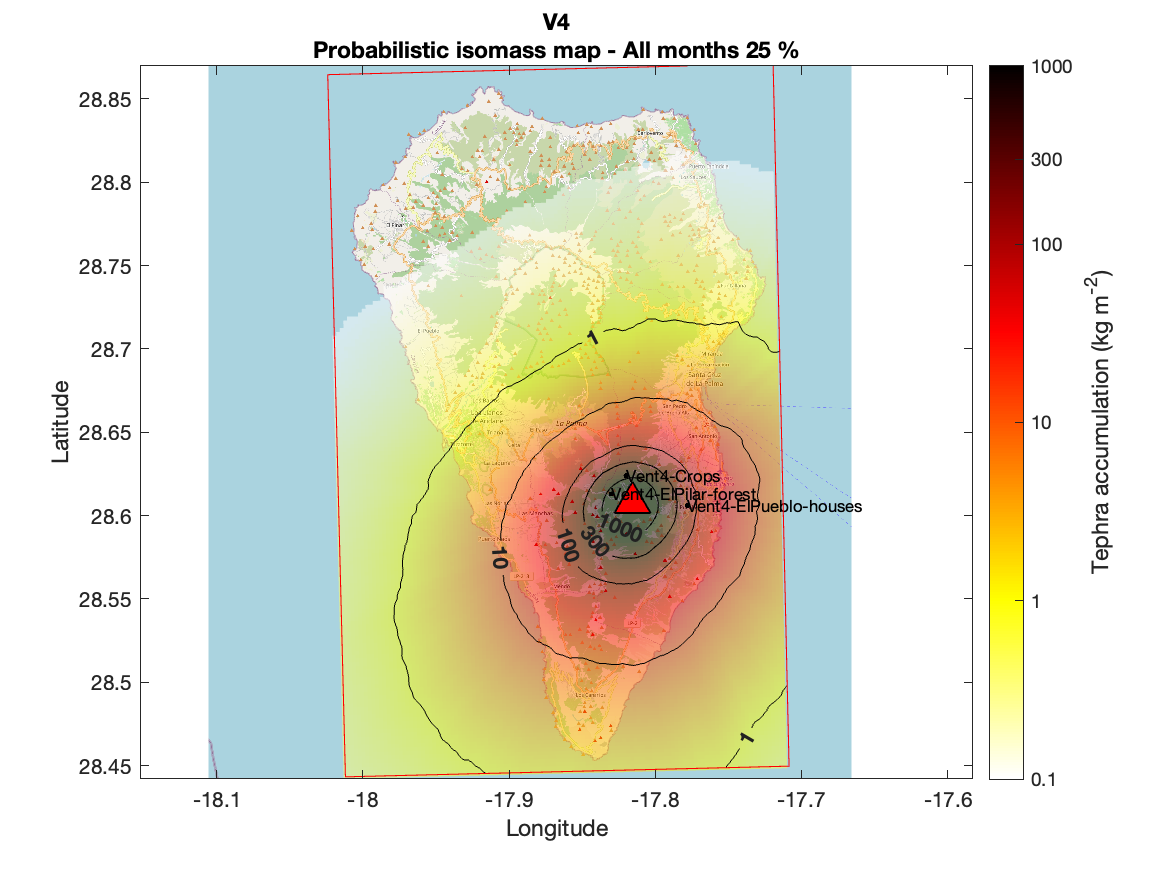

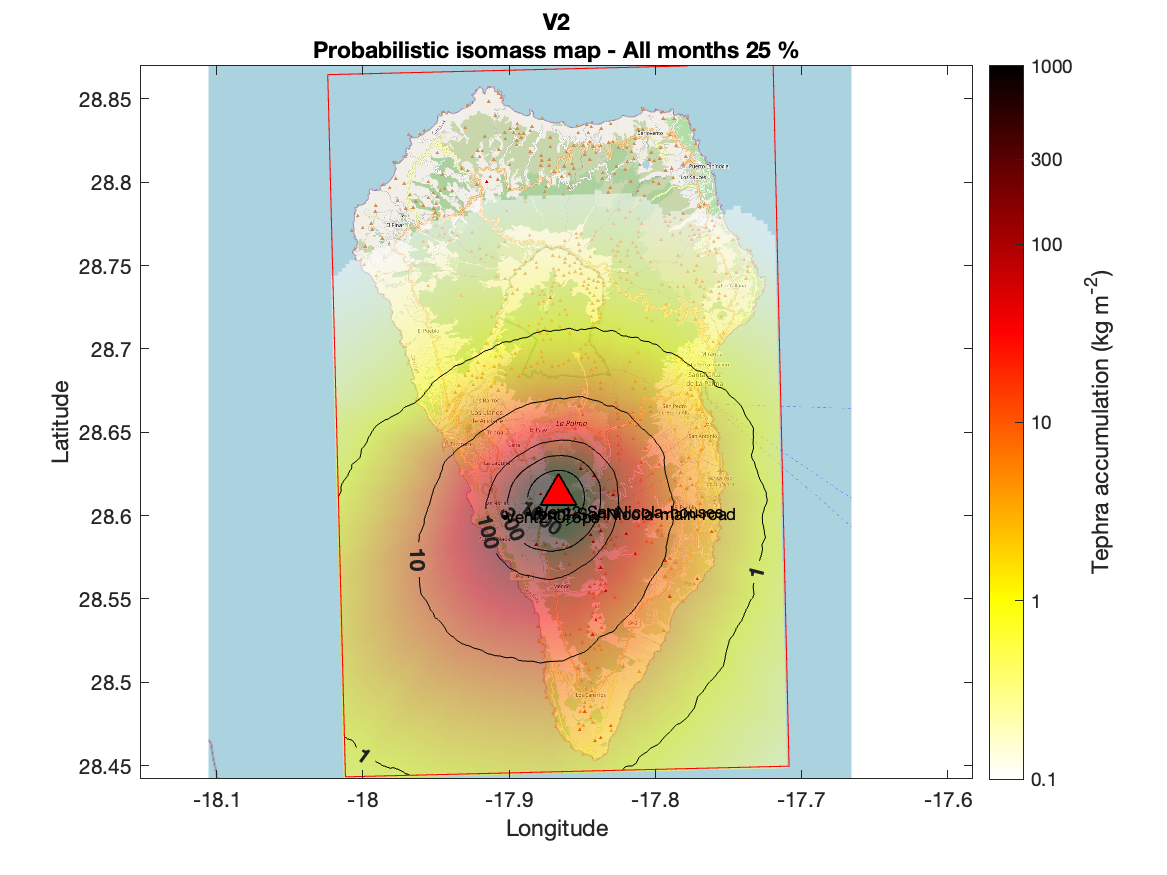

Probabilistic isomass maps

Again, no question to answer, but reflect on:

What are these maps showing?
How do they differ from probability maps?

Hazard curves

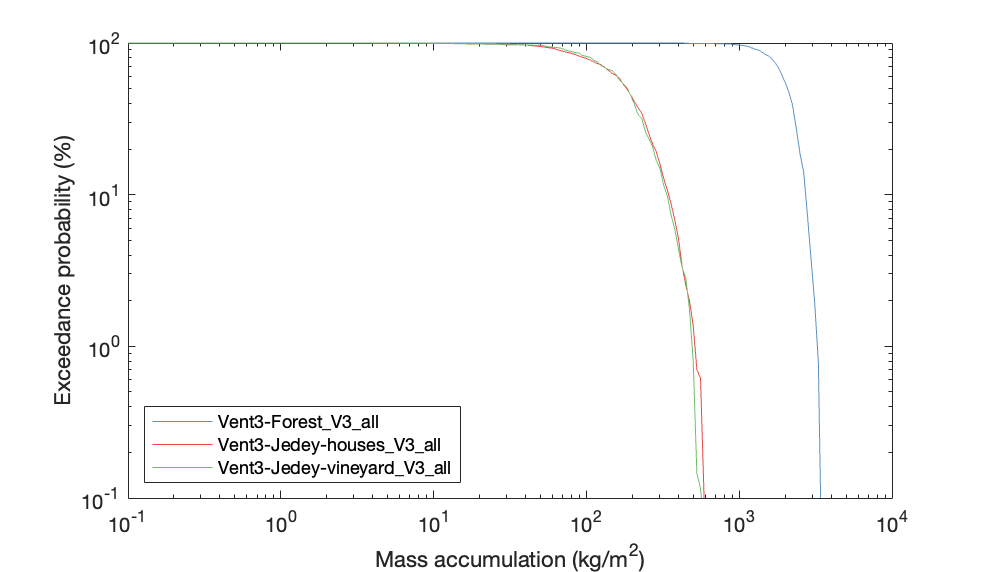

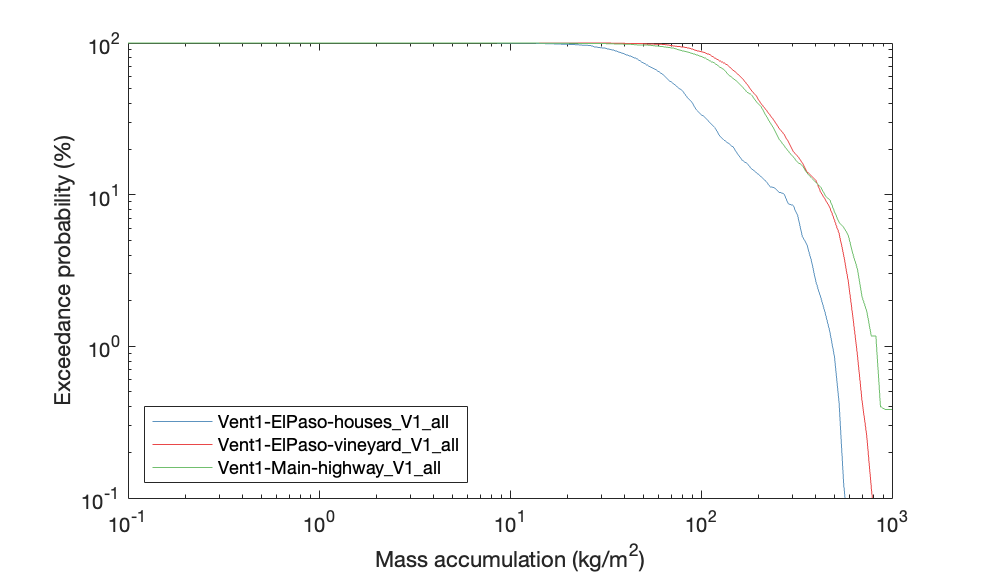

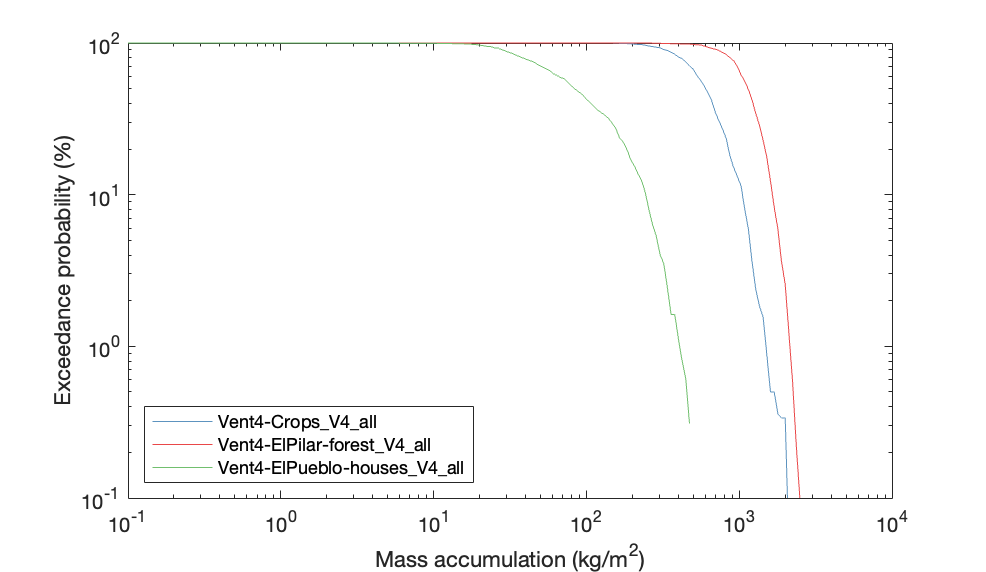

Let's now look at hazard curves. Hazard curves fix a spatial locations (i.e., a single point) and continuously express the probability to exceed any threshold of hazard intensity. The table below shows the location of hazard curves extracted for each vent.

Vent 1Vent 2Vent 3Vent 4Vent 5

Location	Longitude	Latitude
El Paso, houses	-17.85992	28.65247

Location	Longitude	Latitude
San Nicola, houses	-17.88052	28.60222

Location	Longitude	Latitude
Jedey, houses	-17.87995	28.58373

Location	Longitude	Latitude
El Pueblo, houses	-17.77892	28.60605

Location	Longitude	Latitude
Los Canarios, houses	-17.84446	28.49251

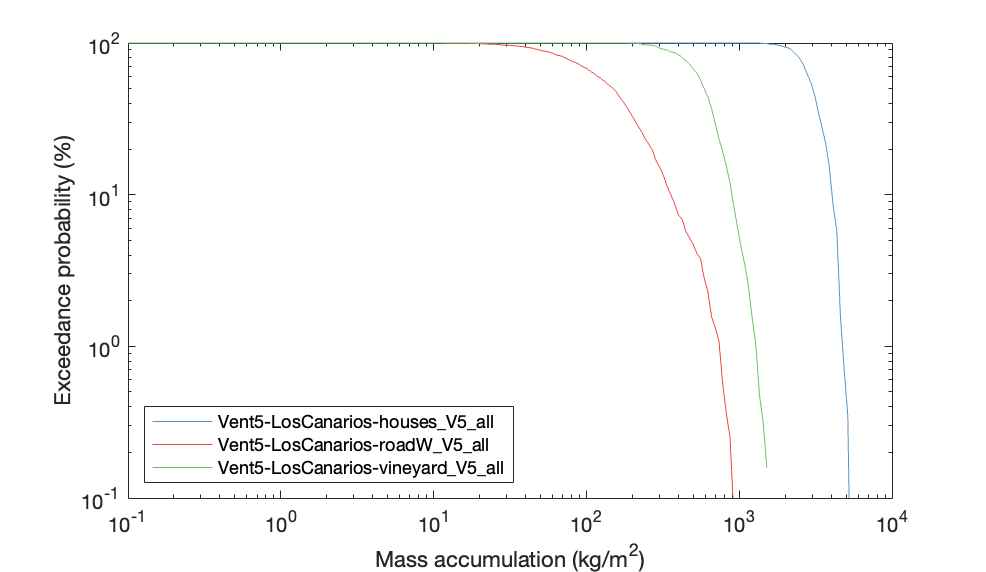

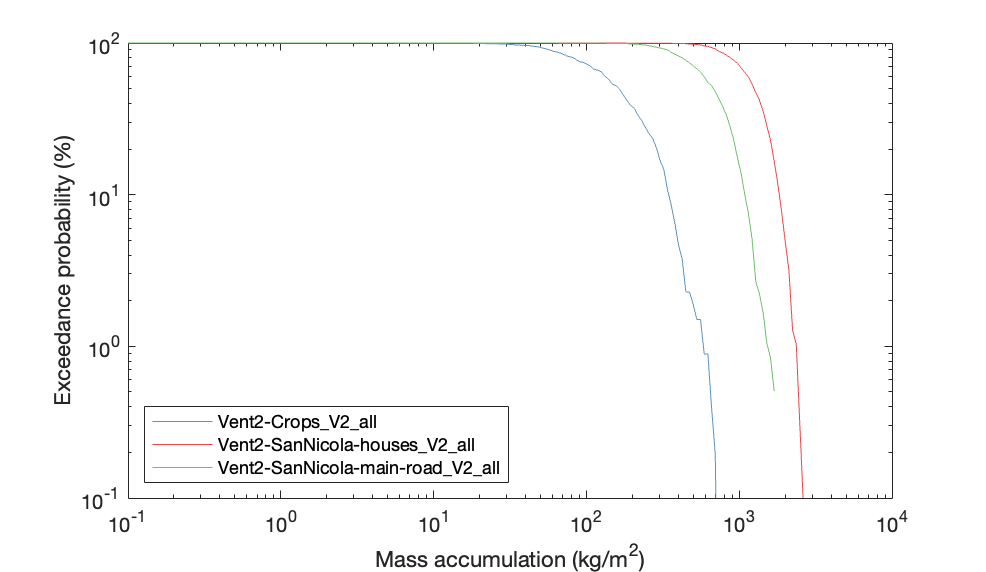

Let's now visualise and analyse the information retained by hazard curves.

With TephraProbWithout TephraProb

From the main TephraProb window, click Display > Hazard curves
Choose the point for your own vent as named in the table above.

Figure 1 represents fragility curves for various European roofs (Spence et al., 2005)³, and estimate a median probability of roof collapse as a function of tephra accumulation. Use these curves to answer the following questions.

Question 4: Hazard curves

For the point attributed to your vent, use the model of Spence et al. (2005)³ to estimate a probability of occurrence of roof collapse. To convert a mass per unit area (\(M\), \(kg/m^2\)) to a load (\(L\), \(kPa\)), use:

\[ L = M \times 9.81 \times 10^{-3} \]

Assuming that the considered buildings are of a MS fragility class, what are the probabilities of roof collapse for associated with mass loads for 25% and 75% probability of occurrence?

Accessing hazard curves with data tips

On the hazard curve figure, you can activate the Data Tips tool. This allows you to click on the curve and directly get the underlying data. It is hard to get exact probabilities, so anything within a ± 5% range is ok.

Estimating probability of roof collapse

Once you have estimated the load, you can read the corresponding probability of roof collapse from Figure 1. If you feel adventurous, you can also compute it directly from the Matlab command line (where \(L\) is the load):

    P = normcdf(log(L), log(4.5), 0.2)

Note that the MS class according to Spence et al. (2005)³ is characterised by:

A normal cumulative density function
A mean value of 4.5 kPa
A standard deviation of 20%

Refer to the original paper for more information.

Food for thoughts

Well done - you have successfully completed a scenario-based probabilistic hazard assessment for tephra accumulation! Keep in mind that:

The scenario-based part implies that this hazard is contitional to the occurrence of the eruption scenario. This contrasts with a fully probabilistic volcanic hazard assessment, where the spatio-temporal probability of occurrence of given volcanic phenomena also need to be accounted for.
Having pretty maps is great... but knowing how to communicate the hazard output and the associated assumptions and uncertainties is often equally important. Keep that in mind for the rest of the exercises, both in the lab and in the field.

Summary

This module provided a practical application of the concepts introduced in the previous module, using La Palma as a case study and producing a scenario-based hazard assessment for tephra accumulation using TephraProb.
